Seven New CNC Swiss-Type Turning Center Models

Hanwha Machinery America, a Division of Hanwha TechM Company, will feature a total of eight CNC Swiss-type turning centers. Also featured will be a large display of automotive applications as well as a PartMaker CAM System Kiosk.

The Hanwha CNC Swiss-type turning centers that will be displayed include:

• The new Hanwha XD16H with .625" bar capacity at the main and sub spindle, two-path Hanwha FANUC 32i-B 7-axis control, 18 tool positions, six standard live tool positions, 15,000 RPM main spindle, 10,000 RPM sub spindle, 1,600 IPM rapid traverse rate, independent four-position back working station, synchronized guide bushing.
• The Hanwha XD32H with 1.25" bar capacity at the main and sub spindle, two-path Hanwha FANUC 7-axis control, 23 tool positions, eight standard live tool positions, 8,000 RPM main spindle, 7,000 RPM sub spindle, 1,200 IPM rapid traverse rate, independent four-position back working station, synchronized guide bushing.
• The new Hanwha XD20VB with Y2-axis, .750" bar capacity at the main and sub spindle, two-path Hanwha FANUC 31i-B 9-axis control, optional fully programmable B-axis tool post with six live tool positions, 27 tool positions, 15 standard live tool positions, 10,000 RPM main spindle, 8,000 RPM sub spindle, 1,400 IPM rapid traverse rate, independent eight-position back working station with Y2-axis, synchronized guide bushing.

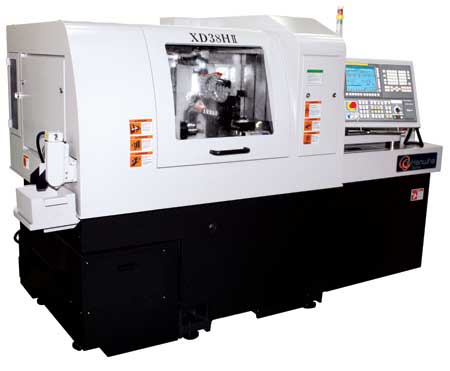

• The new Hanwha XD38HIIB with Y2-axis, 1.50" bar capacity at the main and sub spindle, two-path Hanwha FANUC 31i-B 9-axis control, optional fully programmable B-axis tool post with six live tool positions, 26 tool positions, 17 standard live tool positions, 8,000 RPM main spindle, 7,000 RPM sub spindle, 1,260 IPM rapid traverse rate, independent eight-position back working station with Y2-axis, synchronized guide bushing.
• The new Hanwha XD26HII with 1.00" bar capacity at the main and sub spindle, two-path Hanwha FANUC 32i-B 7-axis control, 23 tool positions, eight standard live tool positions, 10,000 RPM main spindle, 8,000 RPM sub spindle, 1,400 IPM rapid traverse rate, independent four-position back working station, synchronized guide bushing.
• The new Hanwha XD20N-H is convertible between guide bushing type and non-guide bushing type, and feature .750" bar capacity at the main and sub spindle, two-path Hanwha FANUC 32i-B 7-axis control, 23 tool positions, eight standard live tool positions, 10,000 RPM main spindle, 8,000 RPM sub spindle, 1,400 IPM rapid traverse rate, independent four-position back working station, synchronized guide bushing and non-guide bushing kit.

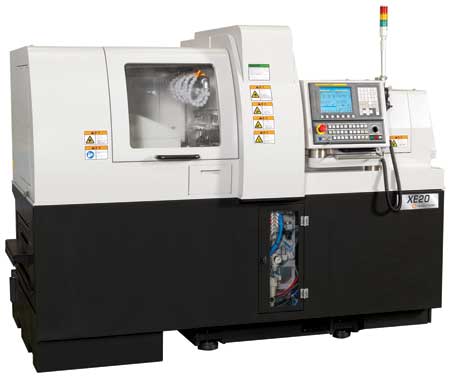

• The new Hanwha XE 20, designed as an economical version of Hanwha's XD20H model, features .750" bar capacity at the main and sub spindle, two-path Hanwha FANUC control, 23 tool positions, eight live tool positions available, 10,000 RPM main spindle, 8,000 RPM sub spindle, 1,200 IPM rapid traverse rate, independent four-position back working station, synchronized guide bushing.
• The new Hanwha STL32 10-axis turret type CNC Swiss turning center with a new version Siemens Interactive 3-Path CNC control, 1.250" bar capacity at the main and sub spindle, 72 total tool positions, 3-axis 10-position turret with live tool position at each station and gang tool slide at the main spindle, independent four-position back working station, synchronized guide bushing, heavy slant bed design, 15 HP and main and sub spindle.

For more information contact:

Hanwha Machinery America, Inc

9750 South Oakwood Park Drive

Franklin, WI 53132

414 421-2300

www.hanwhamachinery.com

IMTS 2014 Booth S-9453
