Camera Based 3D Measuring System for Robot Grinding Cells
August 1, 2014

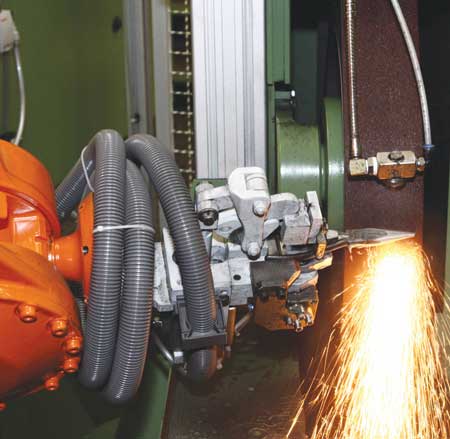

Machining with belt grinding station combined with a robot grinding station.

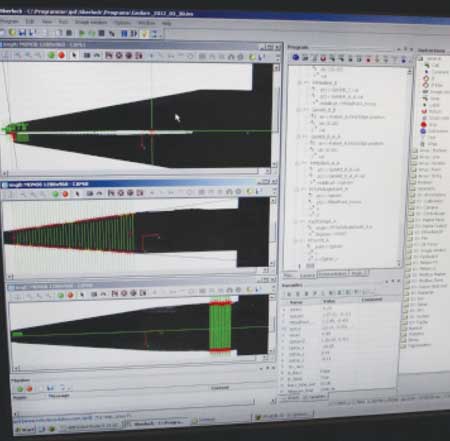

Analysis program for camera measuring system.
Berger's robotic grinding station, part of the RSP4B2L1M series, machines pliers with belt grinding stations type BSS10. The station is equipped with a camera measuring station so that it is possible to measure the workpiece tridimensionally. The pliers are stored in a circulating chain magazine and can be fed to a cleaning station after the grinding process.
For more information contact:
Berger LLC
44160 Plymouth Oaks Blvd.
Plymouth, Michigan 48170
734 414 0402
info@bergerllc.com
www.bergerllc.com
IMTS 2014 Booth N-6472
