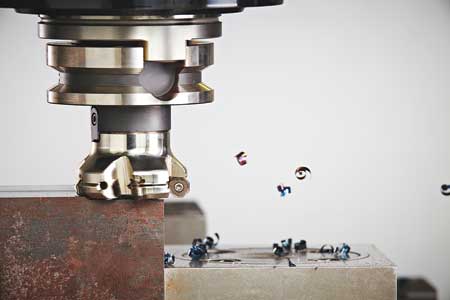

The Double Octomill -05 face milling cutter for small machines.
Seco Tools' High Feed 2 cutter is intended to provide high feedrates at small depths of cut for applications such as pocketing, ramping, helical interpolation, facing, contouring, slotting and plunging.
At AmeriMold 2013 in booth 135, Seco Tools will display its small-diameter Square 6 -04 shoulder milling cutter, High Feed 2 line of small diameter high-feed milling tools and its Double Octomill -05 face milling cutter for small machines. These recent tooling innovations are intended to increase productivity and provide longer tool life for mold machining.
Offered in diameters from 0.75" to 2.5" and with a maximum cutting depth of 0.157", Square 6 -04 cutters are designed for general machining operations that include square shoulder milling, face milling, slotting, plunging and slotting by plunging. According to Seco, the cutters are ideal for small and medium milling machines.

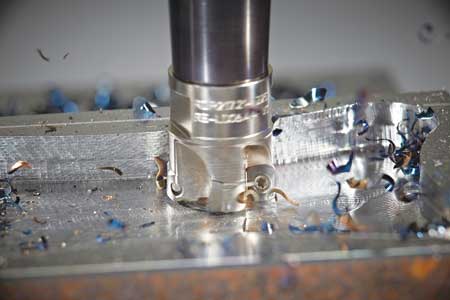

The High Feed 2 cutter provides high feedrates at small depths of cut for applications such as pocketing, ramping, helical interpolation, facing, contouring, slotting and plunging. Cutter diameters range from .625" to 1.25".
Available in diameters from 1" to 5", the Double Octomill -05 are recommended for applications requiring maximum depths of cut at 0.118". All Double Octomill cutters use inserts that provide 16 numbered cutting edges to minimize cost per edge and per part. Insert pockets feature 8 negative angles for using double sided inserts, while inserts use positive rake angles to minimize power consumption.
For more information contact:
Seco Tools Inc.
2805 Bellingham Drive
Troy, MI 48083
248-528-5444
secotools.us@secotools.com
www.secotools.com
AmeriMold 2013 Booth 135
