VTL Designed for Repeatability, Accuracy
June 1, 2013

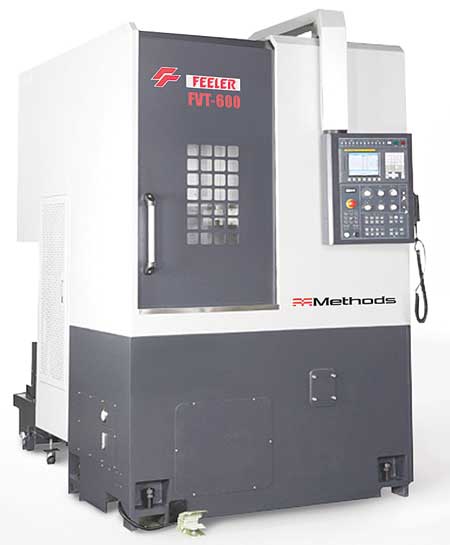

Methods Machine Tools, Inc. has introduced the FEELER FVT-600 vertical turning lathe (VTL) for machining large, heavy parts including those used in aerospace and power generation industries. The FEELER FVT-600 is available in left-side and right-side versions, allowing automation to be stationed between the lathes.
To minimize thermal deformation and increase positioning accuracy, the FVT-600 features sturdy construction and precision ballscrews that are directly coupled to AC servo motors. The FEELER VTL features a rigid spindle that is supported by two double-row cylindrical roller bearings and duplex angular thrust bearings to enable heavy cutting in both radial and axial directions. The FVT-600 design permits coolant to flush chips to an extra wide conveyer where the chips are immediately evacuated.
The FEELER FVT-600 features a 12 position turret and offers X-axis travels of 12" (305 mm) and Z-axis travels of 25.6" (650 mm). Spindle speeds range from 50 to 2,000 RPM on a standard chuck size of 15" (381 mm) and optional chuck sizes including 18" (457.2 mm), 21" (533.4 mm) or 24" (609.6 mm), providing metal removal rates of 24 m / min. The lathe offers a maximum turning diameter of 23.6" (600 mm) and a maximum turning length of 25.6" (650 mm). Maximum workpiece weight is 2,205 lbs (1,000 kg).
A FANUC 0i-TD control is standard and available in a swiveling control box. The FEELER FVT-600 offers a compact footprint at 134" length x 71" width (3,400 mm length x 1,800 mm width) and weighs 19,842 lbs (9,000 kg).
For more information contact:
Dale Hedberg
Methods Machine Tools, Inc.
65 Union Avenue
Sudbury, MA 01776
877-MMT-4CNC (877-668-4262)
dhedberg@methodsmachine.com
www.methodsmachine.com
