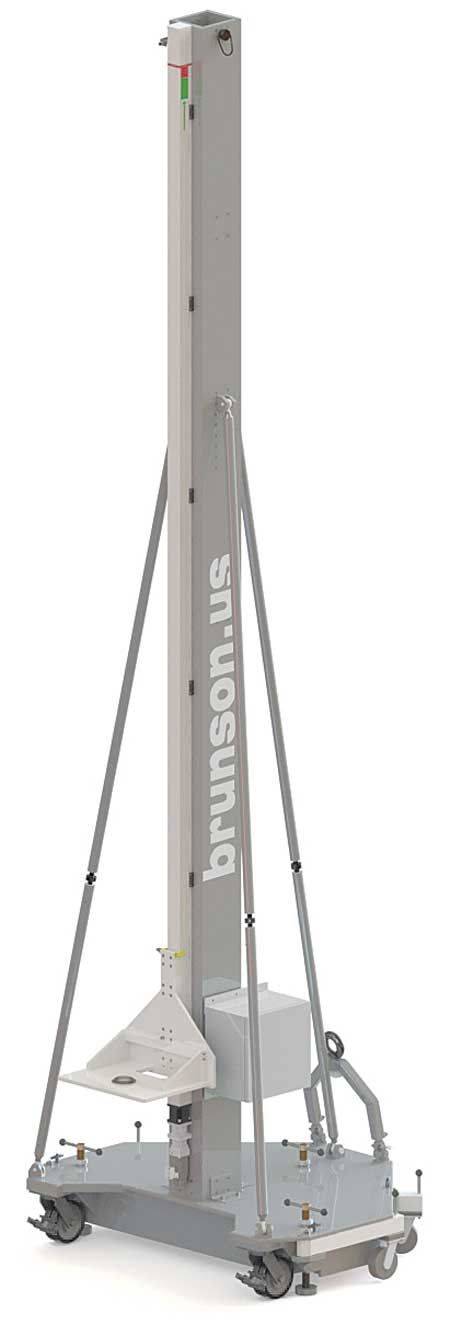

Motorized Vertical Tooling Bar



Brunson Instrument Company offers a large-scale motorized vertical tooling bar (MVTB) with a new small footprint design. Brunson's line of MVTBs provides users of laser trackers, laser radar, theodolites and other portable measurement devices with a stable metrology platform at high elevations up to 34' (10.4 m) above the plant floor. The MVTB is a Brunson built-to-order product.

The remotely controlled MVTB stand is used for large-scale metrology applications such as aircraft measurement inspection and high-bay satellite assembly. The customer's metrology instrument is mounted on a motor driven carriage that is outfitted with a standard 3-1/2" -8 thread. A hand-held pendant moves the carriage up and down the vertical rail. A motor brake holds the carriage in case of a power outage. Users can move the measurement devices around the shop floor using the casters (manually retracted trivet feet) under the heavy-duty tribrach base, or by low-speed towing vehicles.

For more information contact:

Brunson Instrument Company

8000 E. 23rd Street

Kansas City, MO 64129

877-632-7873

sales@brunson.us

www.brunson.us
