Sealed Quick Jaw Change Chucks
August 1, 2016

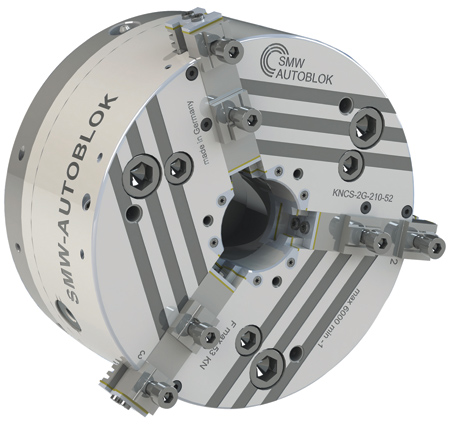

At IMTS 2016, SMW Autoblok will be featuring the KNCS-2G next generation of quick jaw change chucks. The KNCS-2G offers the same superior flexibility, minimal set-up times and repeatability as the original KNCS-N, but with added protection and efficiency, designed for mass production applications.
With its lubrication system, the KNCS-2G is designed to save time and money in maintenance and upkeep. "The 2G's optimized jaw guideways make lubrication necessary only every third shift," said a company spokesperson. Additional channels and grease pockets in the jaw guideways help the chuck operate for longer, while seals in the chuck body and base jaws of the KNCS-2G help provide a defense against chips, lubricant and other debris.
"The chamfered guideways of the KNCS-2G allows for jaws to be changed in less than 60 seconds, making this chuck ideal for machines that require frequent setup changes," said the spokesperson. The ability to interchange jaws with the standard KNCS-N offers flexibility by allowing existing master jaws to be used without sealing. "These features, in combination with a low loss of grip force due to centrifugal force, make this chuck well suited for high-speed applications," continued the spokesperson.
For more information contact:
Larry Robbins
Vice President of Sales
SMW Autoblok Corporation
285 Egidi Drive
Wheeling, IL 60090
847-215-0591
lrobbins@smwautoblok.com
www.smwautoblok.com
IMTS 2016 Booth W-1400
