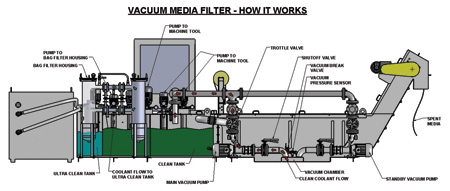

Vacuum Media Filter
August 1, 2016
"Vacuum Media Filter efficiently removes fine chips and grinding sludge and is very effective in applications requiring coolant clarity to 10 microns," said a company spokesperson. "Jorgensen's vacuum media filtration systems are suited for various CNC grinding, metalcutting and for the demanding composite machining applications at aerospace OEM's and top tier parts suppliers to aerospace OEM's."
Roll media filters are engineered to meet customer specifications and are fabricated with a coolant reservoir per requirements.
Features and Benefits
- Fine filtration to 10 microns
- Provides positive filtration in very difficult applications
- Effective removal of fine chips, grinding sludge and swarf
- Use of deep filter cakes for more efficient filtration
- Heavy gauge steel construction
- Stainless steel designs available
- Positive seal design to eliminate fines migration
- Wide range of filter media offered to meet all applications
- Vacuum systems allow for smaller footprints in higher flow rate applications
- Can be used for primary or secondary filtration
- Flow rates of 5-5,000 gallons per minute (to 19,000 liters per minute) for stand-alone or central systems
- Effective pre-clean system for high pressure coolant.
Coolant Flow Rates
VRM - 600: 0 - 60 GPM
VRM - 1200: 61 - 120 GPM
VRM - 2400: 121 - 240 GPM
VRM - 10000: 241 - 1,000 GPM
Flow rates to 5,000 GPM available.
Jorgensen Conveyors s can be integrated with:
- High pressure coolant system
- Pumps / plumbing / coolant transfer
- Downstream filtration
- Tramp oil skimmers
- Coolant chillers / heat exchangers
- Complete electrics / controls
- Air knife
- Low media alarm
- Media rewinder
