Short Toolholders for Low Clearance
August 1, 2016

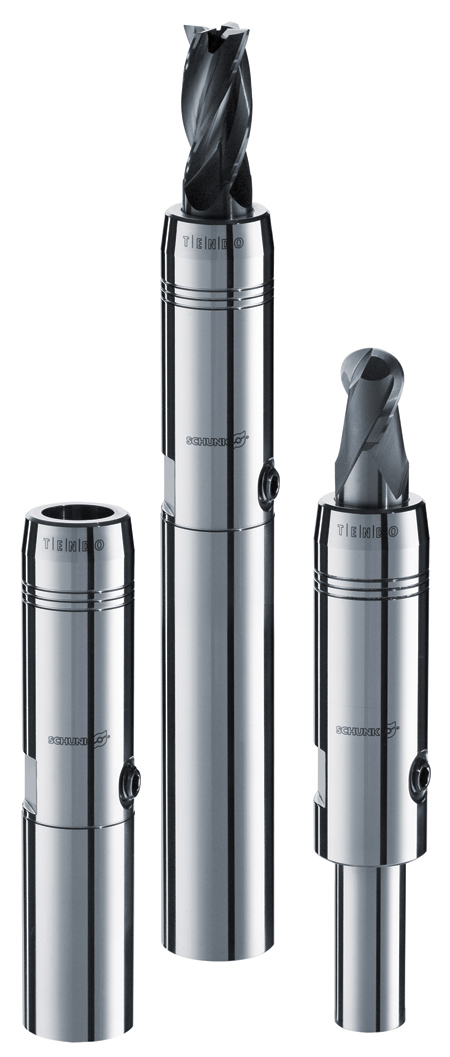

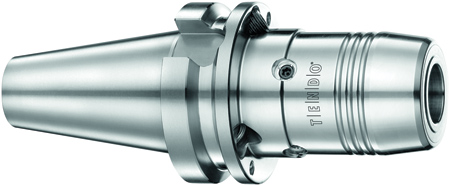

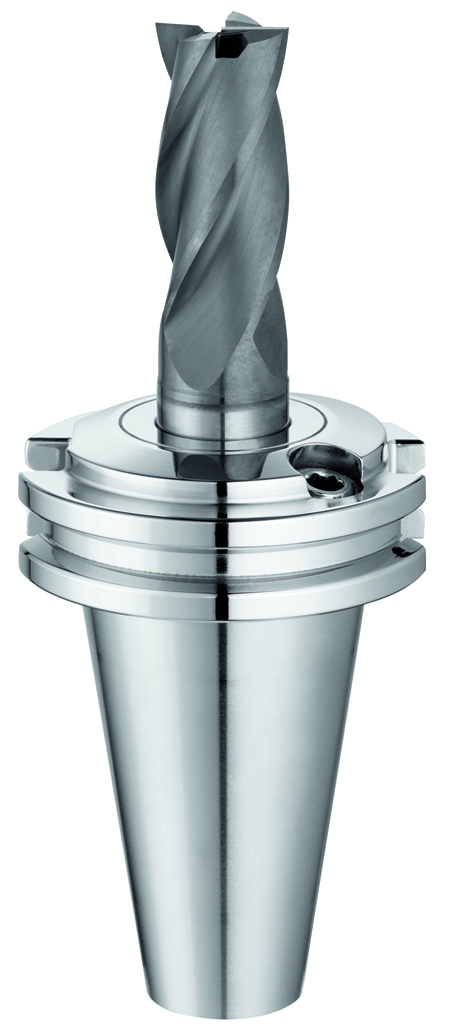

The TENDO-Tech is a line of toolholders offered as standard from SCHUNK. These toolholders have technical features incorporated into the toolholder or are designed for a niche market or application, and are manufactured from the same tool steel as SCHUNK's Platinum line.
The TENDO-ES is short and rigid and the tool shank is clamped inside the machine spindle taper. It is designed for low clearance situations and is a good combination with the SVL extension, which is quick and easy to change.
The TENDO-TURN is easy to change in turret mounted and CNC lathe applications. It is designed for thru coolant drills and has added vibration dampening.
The TENDO-RLA offers easy and accurate tool length presetting. The TENDO-ZERO is the toolholder to use for control of run-out for reaming and precision drilling.
All of the TENDO-TECH line offers direct clamping diameters for precision, have a run-out of 0.003 mm or less, have enhanced vibration dampening and are repairable. They are available in CAT 40 and CAT 50 tapers and are sleeveable for flexibility.
For more information contact:
SCHUNK Inc.
211 Kitty Hawk Drive
Morrisville, NC 27560
919-572-2818 / 800-772-4865
info@us.schunk.com
www.schunk.com
IMTS 2016 Booth W-2000
