The HAIMER Duo-Lock is a stiff and precise interface for modular tool systems.

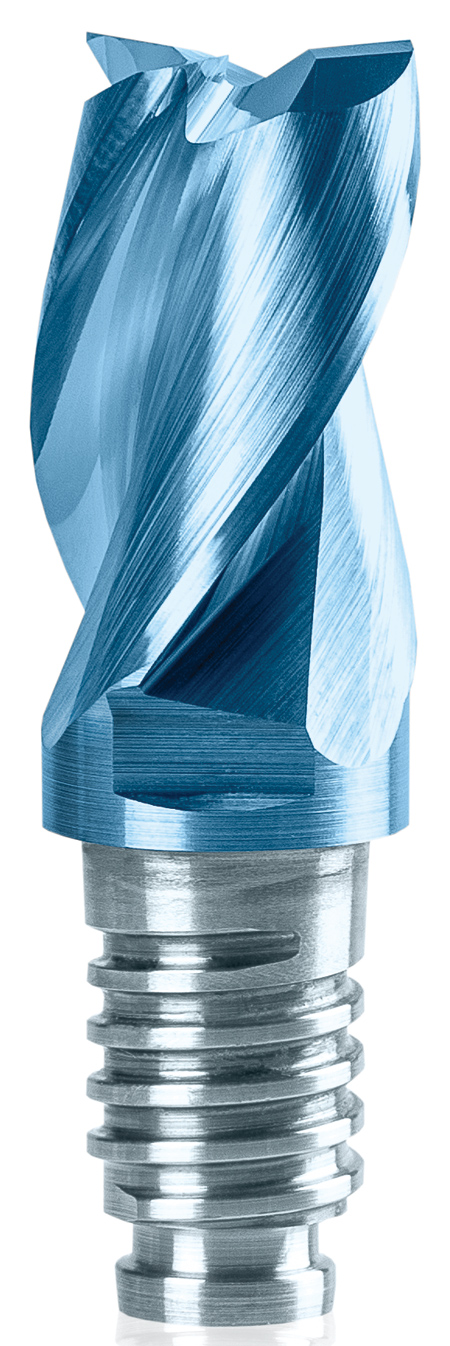

Fitting cutting tool heads will be added to the Haimer portfolio in the future.
The Safe-Lock principle: Spiral-shaped grooves integrate into corresponding carbide drive pins in the toolholder, uniting frictional clamping force and positive locking.
HAIMER's end mill geometries utilize unequal flute and helix designs to provide chatter-free high-end machining.<

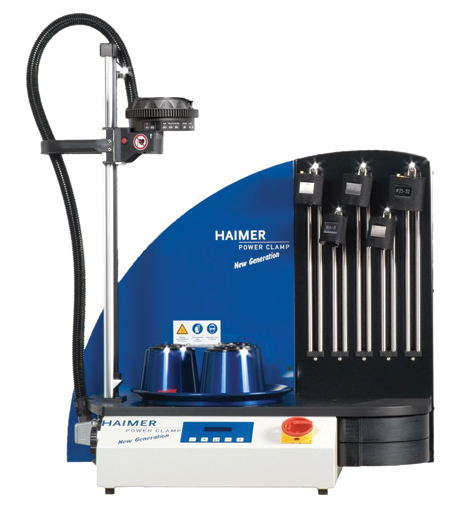

HAIMER Power Clamp shrink fit machines provide 360° gripping torque with repeatable balance.
HAIMER Shrink Fit technology provides 0.00012" runout precision with 360° gripping torque, along with a repeatable balance (G2.5 @ 25,000 RPM).

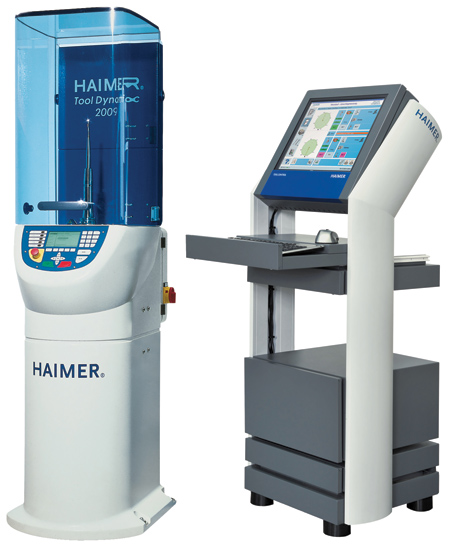

HAIMER Tool Dynamic 2009 Preset Balancing Machines combine the benefits of automated tool balancing with tool pre-setting for high-speed machining performance.
HAIMER 3D Sensors make locating the edge in XYZ easy.
The HAIMER Cool Flash system provides optimal coolant delivery even at high RPM.
HAIMER USA will have on display its new modular interface Duo-Lock for carbide cutting tool heads, Safe-Lock tool clamping system, Power Mill end mills, Shrink Fit technology and more.

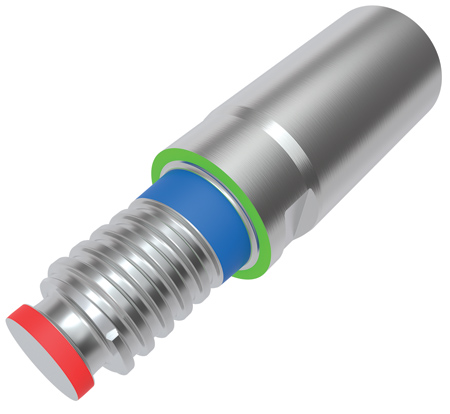

HAIMER USA will feature its new modular interface Duo-Lock for carbide cutting tool heads. "To combat the steadily increasing cost of carbide, modular cutting systems with carbide heads have continued to gain traction in the marketplace," said a company spokesperson. "HAIMER has recognized the value of such modular systems and has created a stiff, precise interface. The concept of Duo-Lock provides maximum stability and stiffness based on an innovative thread with the patented double cone connection and an additional third supporting pilot at the base of the interface."

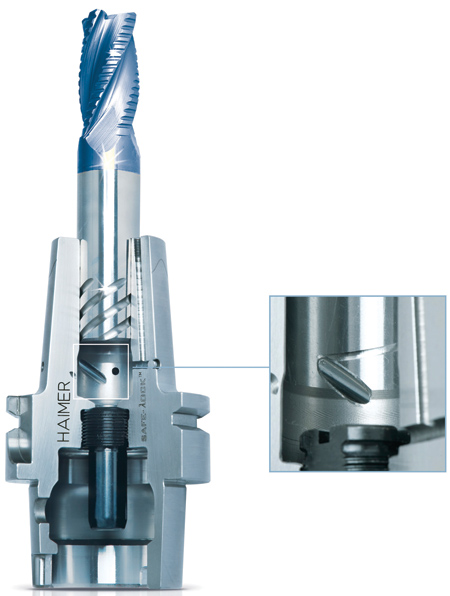

The HAIMER Safe-Lock Clamping System provides pullout protection and is built to withstand tough materials. Spiral-shaped grooves integrate into corresponding carbide drive pins in the toolholder, uniting frictional clamping force and positive locking. This allows for increased cutting depths and feed rates and is designed to double metal removal rates. The design is engineered to provide increased MRR without sacrificing runout or balance accuracy. It is now available in a greater variety of sizes, tapers and clamping systems.

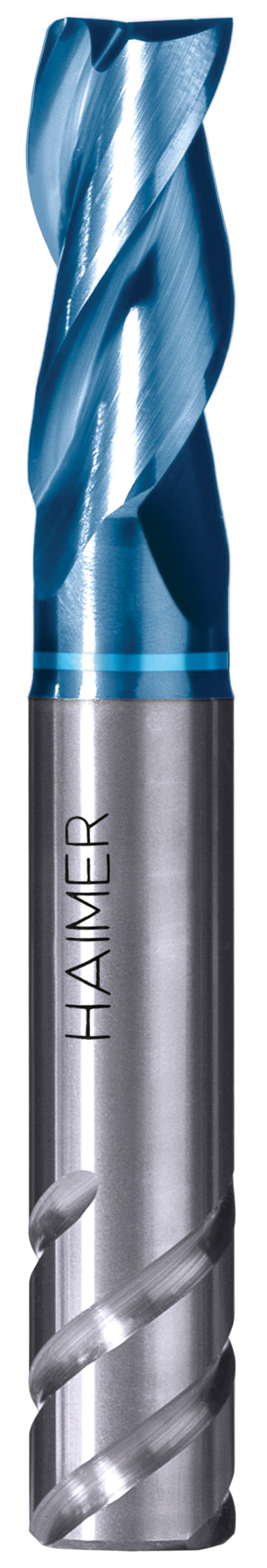

The Power Mill end mill series is made from K20-K40 grade fine grain carbide developed to be matched with HAIMER's toolholders. HAIMER's end mill geometries utilize unequal flute and helix designs to provide chatter-free high-end machining. HAIMER Power Mill end mills have integrated Safe-Lock shanks for optional use with the Safe-Lock toolholding technology. Its variable helix design is engineered to provide vibration-free machining and runout accuracy of <0.0002". Power Mill end mills are precision ground and fine balanced for consistent and repeatable performance and enhanced metal removal rates. The expanded offering is available in inch and metric sizes.

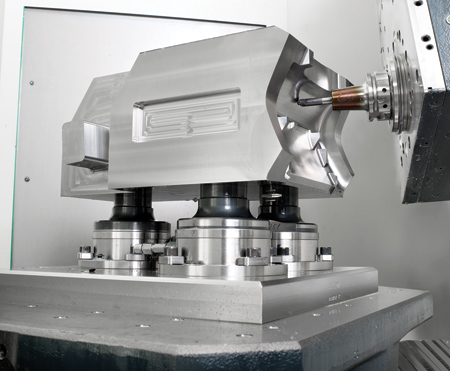

HAIMER Shrink Fit technology provides the 0.00012" runout precision with high 360° gripping torque along with repeatable balance (G2.5 @ 25,000 RPM) for enhanced tool life and surface finish. Shrink Fit technology has no moving part and clamps the same way every time so there is no variation between tool changes.
Mini Shrink Fit for micro machining has a slim profile design to eliminate part interference and a 3° taper for longer reach capability with shorter tool overhang. As with all HAIMER Shrink Fit, it has 0.00012" runout accuracy with high balance, quality and stability. Mini Shrink Fit is ideal for the HAIMER Power Clamp Nano shrink fit machine.
HAIMER ER Collet Chucks are fine balanced at G2.5 @ 25,000 RPM, provide high runout accuracy and come in a variety of lengths and sizes.
The Power Series - including Power Shrink Chucks and Power Collet Chucks - is suitable for all applications but especially designed for high-performance machining as well as heavy milling with a high chip volume. The Power Series is engineered with more mass for greater vibration dampening and better surface finishes.
HAIMER Tool Dynamic Balancing Machines provide precise measurements to allow for longer cutting tool life, reduced machine spindle wear and better surface finish.

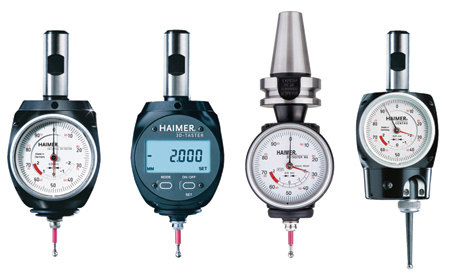

HAIMER 3D Sensors quickly find the exact positioning of the spindle axis on the edges of the workpiece without the math of calculating the probe's diameter. The sensors are pre-calibrated to incorporate the probe tip radius offset. With HAIMER sensors, zero on the indicator means zero on the machine.

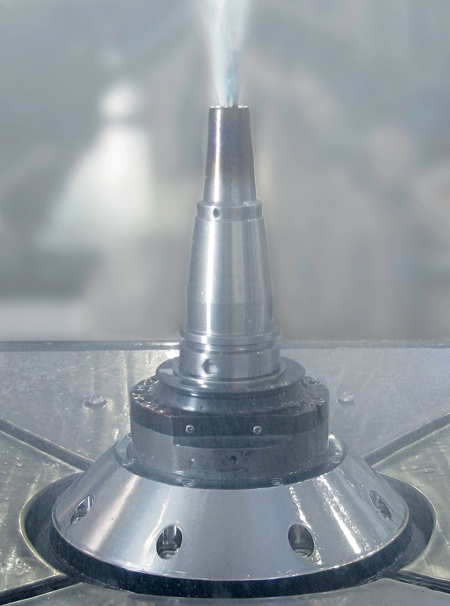

The HAIMER Cool Flash system is designed to provide optimal coolant delivery, even at high RPM. The Cool Flash design directs coolant into T-slots at the nose of the holder and works with the centrifugal force of the rotating tool to lead the coolant along the shank of the cutter and directly to the flutes at any speed. This method of coolant delivery minimizes temperature of the cutting edges, eliminates welded balls of chips on the cutting tools and optimizes runout accuracy.
