New Strausak U-Grind flexible precision tool grinder for small batch grinding and re-sharpening
Rollomatic, a machine tool manufacturer based in Switzerland, and Strausak AG, also of Switzerland, will be exhibiting new cutting tool grinding technology at IMTS 2016.
GrindSmart 528XF with SmartChanger Drill Grinder, 6-Axis CNC
- Traveling workhead for long-flute drills
- Patented, proprietary drill steady-rest compensating for back taper
- Camera option for locating small coolant holes
- Wheel and nozzle changer
- 20 HP synchronous advanced technology grinding spindle.
ShapeSmart NP3 Pinch/Peel Grinder, 3-Axis CNC
- Single-wheel cylindrical grinder with advanced peel grinding capabilities
- Option for two-wheel version allowing pinch/peel grinding
- Renishaw probe for front location
- Optional 3-axis integrated pick-and-place robot
- Neck grinding of finished "long-neck" endmills
- Form grinding of cutting tool blanks.
ShapeSmart NP5 Pinch/Peel Grinder, 5-Axis CNC
- Non-round pinch/peel grinding for form punches
- Camera to locate coolant holes on drills for coolant slot grinding
- Renishaw probe for front location
- Marposs in-process gauging system
- Option for extra-long parts
- Thread grinding on carbide, HSS and stainless.
LaserSmart Super-Fine Laser Cutting Machine, 5-Axis CNC
- Superfine cutting edge <1 micron or defined radius
- PCD/CVD, cBN, natural diamond
- Surface finish that is unachievable by grinding or EDM/EDG
- Laser ablation allows the freedom to optimize chip form geometries
- 2-axis pick-and-place robot, HSK63 tool shank option.
GrindSmart 629XW with SmartChanger Tool Grinder, 6-Axis CNC
- Versatility due to 6-station wheel/nozzle changer
- 20 HP "synchronous" advanced-technology grinding spindle
- Flexibility for production grinding of high-performance cutting tools
- 6-station wheel/nozzle changer
- Torque motor on rotary axis for improved radius control
- Up to 20 mm (3/4") diameter solid carbide endmills/form tools (on 5-axis)
- Up to 12 mm (1/2") diameter solid carbide drills.

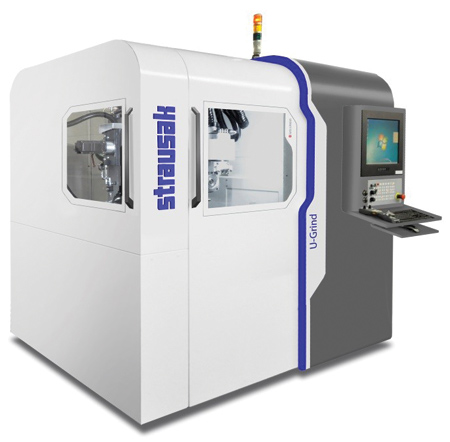

U-Grind
Strausak, a member of Rollomatic Holding, will debut a new flexible, high-accuracy 5-axis CNC tool grinder, U-Grind, during IMTS 2016. The new re-designed model 5-axis tool and cutter grinding machine features the NUMROTO Plus tool design and grinding software.
U-Grind features include:
- Thermal stability to facilitate consistent and accurate small batch production and regrinding, as well as a unique design for precision tool grinding.
- Two different optional loaders are available. Small-batch loader and full robotic automation.
- Standard automatic wheel changer, direct-drive grinding spindle 12 kW (17 HP) and optional auto loader.
- Automatic quick-change system for collet change and for changing basic toolholder ISO-50 taper.
- Optional touch probe for grinding wheel qualification.
- NUM Fleximum control and the latest generation of NUMROTOplus tool grinding software.
- Software available for all types of cutting tools, including complex step/form tools, hobs, burs, shape cutters, T-slot cutters, high performance endmills and drills, routers, form tools, porting tools and more.
- Authorized drill point grinding for well-known manufacturers, including K-land grinding.
- 3-D tool simulation, machine animation and collision checking.
- Digitizing of existing cutting edges for regrinding or grinding pre-fluted tools.
For more information contact:
Rollomatic Inc. USA
1295 Armour Blvd.
Mundelein, IL 60060
866-713-6398
solutions@rollomaticusa.com
www.rollomaticusa.com
Strausak Inc.
1295 Armour Boulevard
Mundelein, IL 60060
866-713-6398
www.strausakusa.com
IMTS 2016 Booths N-7200, N-7214
