The new MarShaft SCOPE 600 plus 3D will make its debut appearance at IMTS 2016. Combining optical and touch sensors in the same unit, the MarShaft SCOPE 600 plus provides 3-D functionality and complete inspection of the workpiece in a single measurement.
Mahr Federal will feature the MarShaft SCOPE 250 plus, the new MarShaft Scope 600 plus 3D, and the MarGear GMX 400 at IMTS 2016. Several custom gauging solutions developed by the MarSolutions Engineered Metrology Team will also be on display.
Mahr Federal's MarShaft SCOPE 250 plus flexible optical system for shop floor measurement is designed for fully automatic measurement of smaller shafts and turned parts directly on the shop floor. It features a matrix camera with four million pixels and measures parts up to 250 mm in length and 40 mm in diameter. Its maximum permissible error (MPE) of less than 1.5 µm + L/40 when measuring diameter and 3 µm + L/125 when measuring length helps ensure accuracy.

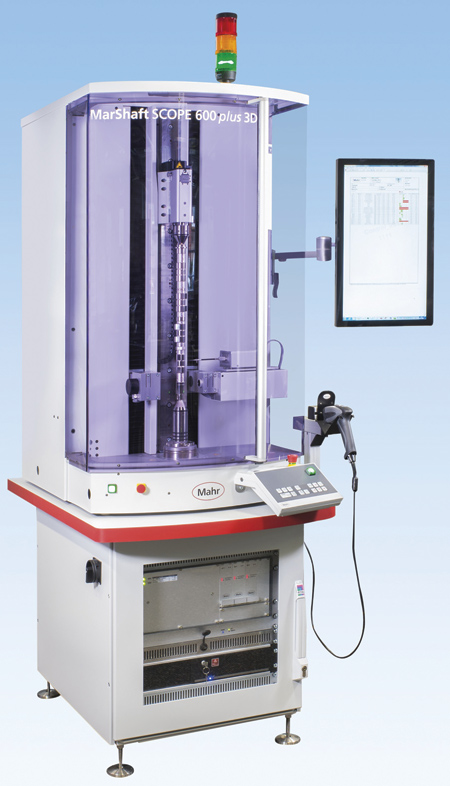

The new MarShaft SCOPE 600 plus 3D combines optical and touch sensors in the same unit. The MarShaft SCOPE 600 plus provides 3-D functionality and complete inspection of the workpiece in a single measurement. The matrix camera optically measures characteristics such as diameter, length, radius, shape, location characteristics, etc., while a new 2-D sensor detects features that are not optically measurable, such as cam lift on concave cam profiles and reference (clocking) features such as holes or keyways.
The MarGear GMX 400 is a Class 1 Universal Gear Tester that can provide accurate analysis for a range of gear and gear tool applications on gears with O.D.s up to 400 mm (15.75"). Part of the Mahr Federal GMX Series, the GMX 400 incorporates a 4-axis Power PC controller with automatic tailstock and a 3-D scanning probe head. The GMX 400 provides a solution for both universal and specialized gear manufacturing processes.
The GMX Series is designed to provide precision and flexibility of gear and form measurement in a single system. Equipped for standalone shop floor or gear lab applications, the GMX 400 can also be fully networked for fast and efficient transfer of measuring results and machine corrections. The GMX Series provides Class 1 accuracy in accordance with VDI/VDE 2612/2613 Group 1.
Mahr Federal will be exhibiting a range of its MarSolutions Engineered Metrology Team capabilities. Custom gauge stations will reflect the three levels of design solutions available from Mahr Federal, including modified standard product gauges, gauges configured from Standard Elements and gauges custom built for the application. MarSolutions examples will demonstrate manually operated gauges, semi-automatic solution, and fully automated robotically loaded gauging stations.
