Flexible 6-Axis Robot and EDM Drilling
August 1, 2016

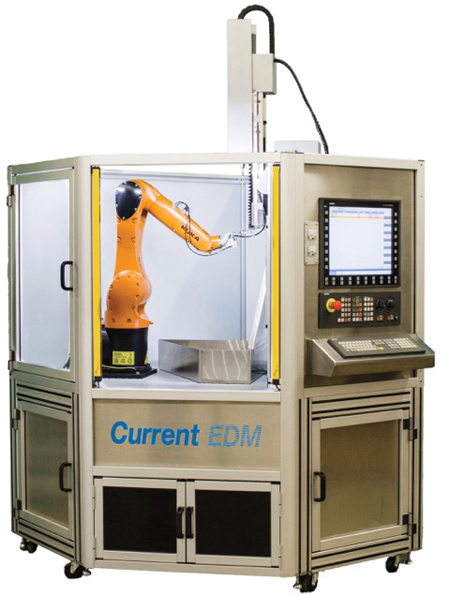

Current EDM has announced its IMTS 2016 lineup to include a robotic drilling cell featuring a KUKA Agilus robot (KR 6 R700). The robotic drilling cell features the Siemens 840Dsl control. Depending on the application, a 25 peak amp (0.006" ~0.080" dia. electrodes) or 57 peak amp (0.008" ~0.256" dia. electrodes) power supply is available.
Current EDM, Inc. has directly integrated the Siemens 840Dsl control with the 6-axis KUKA Agilus robot (KUKA Robotics Corp., Shelby Township, MI) to create an EDM drilling solution for production applications. Producing consistent, virtually burr-free holes in the part. In addition, electrodes and parts can be loaded and unloaded automatically by the robot for hours of unattended operation.
The system can be outfitted with a vision inspection system or incorporated into a cell with other machine tools. The EDMDrill head and the robot are contained within a Plexiglas enclosure with safety light curtains that help insure operator safety throughout the drilling process.
For more information contact:
Current EDM, Inc.
2577 Leghorn Street
Mountain View, CA 94043
650-966-9676
info@currentedm.com
www.currentedm.com
IMTS 2016 Booth E-5051
