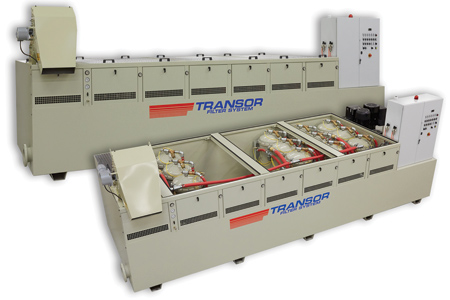

Transor Filter will feature its latest filtration systems at IMTS 2016. "Included will be Transor's new V-SERIES that combines the convenience of Transor's centralized unit with the expandability of the smaller, modular models," said a company spokesperson. Designed for growing businesses, the heart of the system is a filter module that consists of three filter vessels, filter pump and required plumbing.
Each filter module supports three machine tools. When needing to expand, users can add another filter module and pumps to accommodate up to three additional machines. The unit's internal plumbing is already in place so connecting to the additional machine tools is simple.
A V-9 model with three filter modules can deliver 1 µm filtration (OMF) oil to nine machine tools. Each filter module handles up to three machine tools. A V-Series base unit can be initially configured to accommodate future growth.
For example, a unit designed for a total of seven filter modules can start with three modules and nine machines. Then, with each additional filter module, three additional machine tools can be brought on line for up to 21 machines.
The V-Series provides automated back flushing and is virtually maintenance free. Available options include a chiller that can deliver temperature control to +/- 0.1 °C. Temperature control delivers consistent thermal stability to machining operations.
Automated sludge handling provides total system automation with fast cleaning of the unit without any machine downtime. "The modular expandability of the V-Series is a new way for a growing business to experience all the benefits that 1 µm filtration delivers," said the spokesperson.
In addition, a new concept filter will debut at IMTS. This unit is designed to meet the need of those grinding HSS or other heavy stock removal applications such as gear grinding. "The new filter design will eliminate the need for a magnetic pre-filter," said the spokesperson.
For more information contact:
Transor Filter USA
515 Busse Road
Elk Grove Village, IL 60007
847-640-0273
info@transorfilter.com
www.transorfilter.com
IMTS 2016 Booth N-7440
