Ultrasonic Cleaner for Larger Components
August 1, 2016

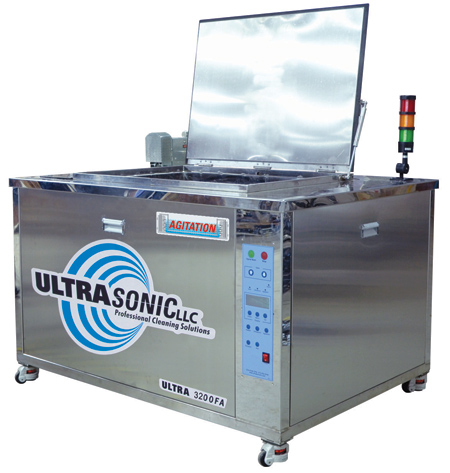

UltraSonic LLC will feature the Ultra 3200FA, a full-featured ultrasonic cleaner with 55-gallon main tank capacity and horizontal transducers for superior cleaning action without solvents at IMTS 2016. These 220V models feature an agitation table, dual filtration, a 10-gallon weir tank, sparge bar and an insulated tank and lid. The V-bottom design allows for cleaning between batches. Side mounted transducers mean there are no "dead spots" so the cleaning action is consistent from top to bottom. With 5,040 watts of ultrasonic power, dual 2,000 watt heaters and basket capacity of 27" L x 18.5" W x 5" H, the Ultra 3200FA is able to clean parts such as rubber and plastic parts, bearings, bolts, transmission components, engine parts prior to assembly, plastic injection molds and more. In addition to industrial/manufacturing environments, they are built for automotive, medical, pharmaceutical, aerospace, engineering and other industries.
The 3200FA operates from 220V power and draws 30 amps. Compact machine dimensions (52" L x 39" W x 33" H) fit into existing shop space with a minimal footprint. Digital touch controls allow easy operation with automatic ultrasonic, agitation and filtration cycles. A seven-day heat and auxiliary timer allows programming to suit production requirements. Agitation table capacity of 300 lbs. is sufficient for large parts or multiple batches of smaller components. An optional dual-basket configuration is available - allowing smaller baskets (18.5" L x 13.25" W x 5" H) to be processed simultaneously side-by-side, designed for larger batches of small components or to clean small and large parts together. With a working depth of 14", the Ultra 3200FA includes a 55-gallon main tank and a 10-gallon weir tank.
Additional models are available with varying capacities, ultrasonic power, electrical requirements and features. Specialized soap is available to speed the cleaning of baked on carbon and heavy solids.
For more information contact:
UltraSonic LLC
P.O. Box 54081
Cincinnati, OH 45255
513-502-9746
info@ultrasonicllc.com
www.ultrasonicllc.com
IMTS 2016 Booth NC-458
