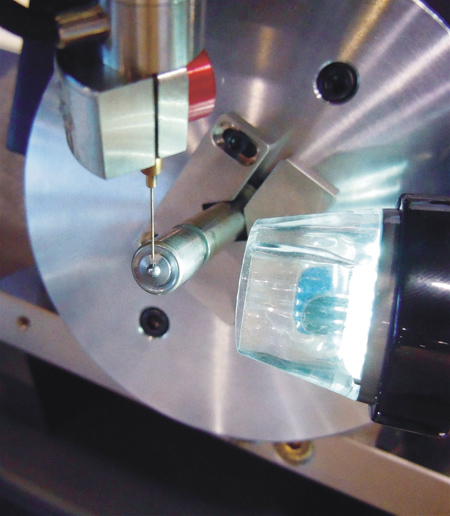

OGP Feather Probe with 0.125 mm probe tip measuring fuel injector nozzles
Optical Gaging Products (OGP), a division of Quality Vision International (QVI), offers enhanced measurement capability with its Feather Probe micro-metrology sensor.
Feather Probe is one of the many specialized sensors available in the OGP multisensor toolbox. This tactile probe uses resonance as its trigger mode. Feather Probe tips can be as minimal as 100 microns in diameter and exhibit trigger forces well below 1 milligram. Feather Probe can measure extremely small features, as well as fragile or easily deformed features. Typically protected behind a cover when not in use, Feather Probe styli can be automatically deployed into the measurement area whenever needed, and retracted out of the way when not in use.
One significant enhancement to Feather Probe is Dynamic Resonance Mode. With Dynamic Resonance, the controller constantly monitors probe resonance to detect potential environmental effects such as temperature, air motion and vibration. With such tiny probes and miniscule probe forces, these external factors can have an adverse effect on measurement accuracy. When such a resonance-altering effect is detected, the controller dynamically adjusts Feather Probe resonance to eliminate the external influences.
Feather Probe is also equipped with an improved deployment mechanism. This deployment mechanism, which moves the probe into and out of the measurement area, now seats securely into a robust kinematic mounting system for improved measurement repeatability.
Feather Probe is compatible with QVI ZONE3, MeasureMind 3D MultiSensor and VMS metrology software platforms. ZONE3, QVI's premium CAD-based 3-D metrology software, features a clear, simple user interface, and its kinematic model simulates the machine, part, fixtures and measuring sensor, updated in real time. Built-in productivity maximizing tools, integrated GD&T functionality and visual validation of measurement intent offer speed and power to the measurement process. ZONE3 supports simultaneous use of multiple sensors, making appropriate tools available for complex measurement tasks.
For more information contact:
Optical Gaging Products
850 Hudson Avenue
Rochester, NY 14621
585-544-0400
800-647-4243
info@ogpnet.com
www.ogpnet.com
