3-D Scanner for Quality Control Processes
August 1, 2016
Quality inspection processes often have to be balanced with the need for speed - especially when the part in question has multiple features or compound curves. "Complex parts can be time-consuming to properly measure and inspect using methods such as touch-probing, calipers or gauges," said a company spokesperson.
"When many points need to be measured and speed is important, automated 3-D scanners such as those offered by ShapeGrabber, a wholly-owned subsidiary of Quality Vision International, are often the answer. Rather than cutting corners or simply not being able to inspect some parts or points, manufacturers can use 3-D scanners for rapid, thorough quality inspection," continued the spokesperson.
A 3-D scanner can automatically capture a dense "point cloud" of millions of data points that represent the entire surface area of the part. With this data, manufacturers can:
- Reduce inspection time
- Troubleshoot fit problems
- Evaluate part wear
- Measure whole parts rather than just a few points
- Minimize equipment downtime and make rapid go/no go decisions.
3-D scanners are suitable in a variety of quality control environments. "In particular, an automated 3-D scanner can enhance 100% inspection, statistical process control (SPC) and production part approval processes (PPAP)," said the spokesperson. No special skills are required to conduct the scan, and the scanned data can be compared to spec via direct comparison to CAD models. The data can also be used to generate visual reports that show deficiencies at a glance.

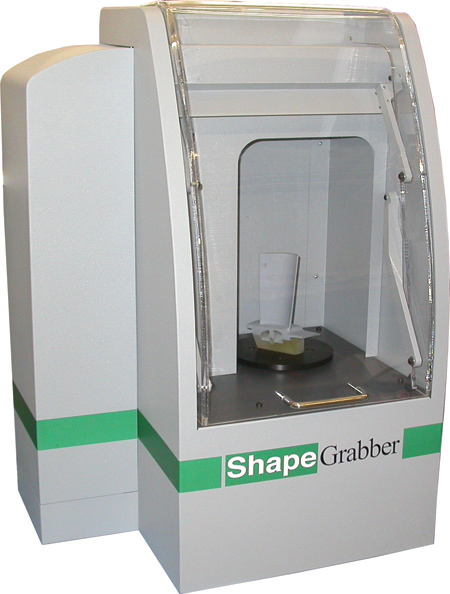

"The ShapeGrabber Ai310 automated 3-D scanner makes quick work of quality inspection. It can not only reduces the inspection time required, but also generate thorough results as well as automated reports," said the spokesperson.
For more information contact:
ShapeGrabber
1900 City Park Drive, Suite 512
Ottawa, ON K1J 1A3
Canada
613-247-1707
www.shapegrabber.com
IMTS 2016 Booth E-5602
