Ultrasonic Sensor for iPad
October 1, 2015

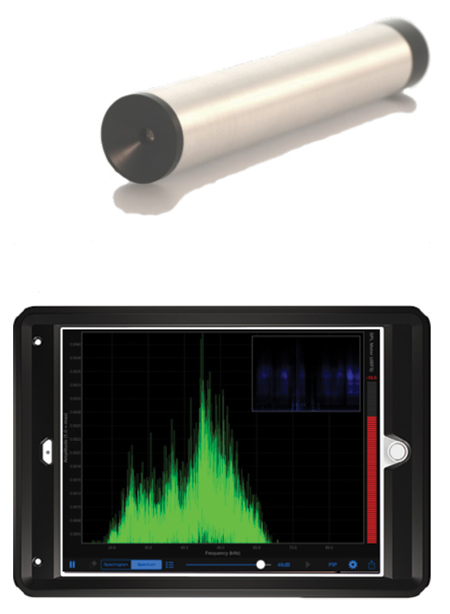

GTI Predictive Technology's Ultrasonic Analyzer is a real-time spectrum, spectrogram, oscilloscope and octave RTA analyzer for iPad. It provides a visual representation of many ultrasounds using a sampling rate up to 384 kHz. The app can record, analyze and use slowdown playback for sounds normally impossible to hear. The app can also analyze any imported audio file into a spectrogram context.
"Ultrasonic is a great tool for doing bearing lubrication testing and detecting air leaks," said a company spokesperson. "The ultrasonic sensor plugs directly into the iPad's Lightning port. It is a highly directional sensor enabling very precise readings."
Specifications:
- 250k sampling per second
- True 16 bit resolution
- Frequency range up to 100 KHz - 125 KHz
- MEMS high sensitivity surface mount wide-band ultrasonic acoustic sensor
- High quality and low noise analog amplification
- 32 bit 80 MHz integrated microcontroller
- Dimensions: 130 mm length x 20 mm diameter
- Eight order anti-aliasing low pass filter.
The sensor is plug & play and connects through a single USB cable into the iPad. For maximum resolution, an iPad Air or Air 2 is required. The app utilizes the newer iPad's 64-bit processor.
For more information contact:
GTI Predictive Technology
33 Zachary Road
Manchester, NH 03109
888-473-9675 / 603-669-5993
info@gtipredictive.com
www.gtipredictive.com
