Complex Machining of Medium to Large Hard Metal Components
October 1, 2015

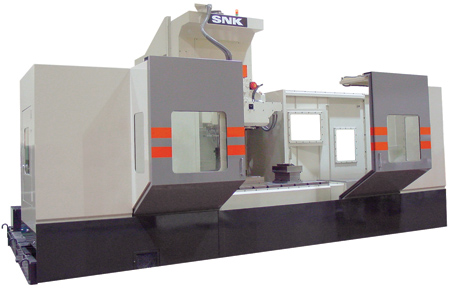

The FSP-80V is a compact vertical machining center designed for a variety of industries requiring complex simultaneous 5-axis contouring of difficult-to-cut materials.
The rigid box-frame spindle head houses a dual face spindle driven by a 30 HP motor that generates 1,407 Nm of torque. "The A and B rotary axes employ a rigid double-pinion drive system that helps ensure stable, continuous 5-axis machining even under demanding loads," said a company spokesperson.
The machine's table size (W x L) is 31.5" x 78.7" and maximum table load capacity is 8,800 lbs. Turcite slideways help to provide accurate machining of difficult-to-cut materials by reducing cutting vibration. XYZ travels are 90.5" x 33.4" x 27.5". AB spindle swivels are +/-30°.
The FSP-80V employs a FANUC 31i-A5 CNC loaded with control features designed to simplify complex contouring operations while delivering enhanced workpiece finishes.
Chip conveyors at both sides of the table provide efficient chip evacuation. A 40 tool high efficiency ATC system (60, 80 optional) shortens cycle times for increased production.
Other optional features include air blow device, through spindle coolant, large capacity coolant tanks, splash guard and spindle overload prevention function.
For more information contact:
SNK America, Inc.
1150 Feehanville Drive
Mt. Prospect, IL 60056
847-364-0801
info@snkamerica.com
www.snkamerica.com
