Jet Edge, Inc., a leading manufacturer of ultra-high pressure waterjet technology, is bringing its latest precision waterjets to FABTECH, November 9-12 at McCormick Place in Chicago in booth S-1974.
During FABTECH, Jet Edge will perform live 5-axis abrasive waterjet cutting demonstrations on its X-Stream-powered EDGE X-5 5-axis waterjet with Aquavision Di control and Closed Loop Filtration System. The waterjet manufacturer also will show its new low-cost BOSS-CUTTER 3-axis waterjet system, its new 55,000 PSI (3800 bar), 30 HP iP60-30 waterjet intensifier pump and its premiere X-Stream pressure intensifier pumps.

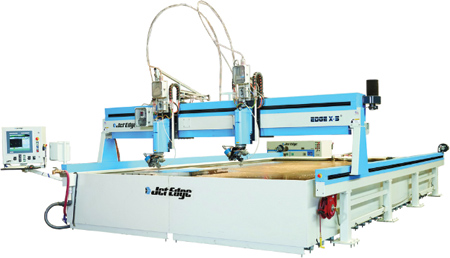

EDGE X-5 5-Axis Waterjet
Jet Edge's EDGE X-5 5-axis waterjet cuts precise taper-free parts from virtually any material. The system is capable of cutting sophisticated 3D parts such as impellers and bevels up to 50°. This workhorse waterjet system is designed to provide years of dependable service in harsh industrial environments. Its sturdy design separates the motion system from the catcher tank, eliminating vibration and ensuring maximum part quality. The ball screw-driven system features direct-couple AC brushless digital servo motors, providing repeatability at +/- .001". Critical bearing components are protected with heavy metal covers with brush seals and positive air pressure. Productivity enhancing options include a second cutting head with mirror cutting capabilities, a pneumatic drill for pre-piercing materials that are prone to delamination, automatic submerged or above-water cutting capabilities and a proprietary laser plate mapping feature that allows precise nozzle-to-plate standoff. The EDGE X-5 features Jet Edge's Aquavision Di industrial PC, which gives operators the freedom to fine-tune programs from any CAD/CAM/nesting software, utilizing advanced HMI features and/or standard G&M code. The EDGE X-5 waterjet machine is available in many sizes, from 5' x 5' (1,500 mm x 1,500 mm) to 24' x 13' (7,300 mm x 3,900 mm).

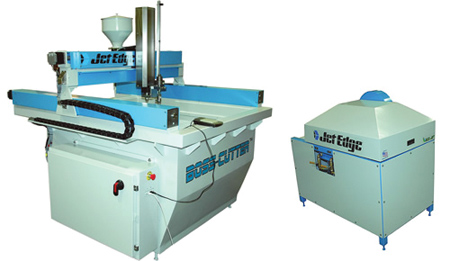

BOSS-CUTTER Waterjet System
Jet Edge's BOSS-CUTTER 3-axis waterjet system cuts parts up to 6" thick from virtually any material. The BOSS-CUTTER has a work envelope of 59" x 59" (1,500 mm x 1,500 mm) and can accommodate sheet sizes up to 67" x 67" with a minimum of 5/16" of clearance all the way around. The system comes standard with a 30 HP Jet Edge ECO-JET direct-drive pump, but can be upgraded to any of Jet Edge's 55,000 PSI (3800 bar) waterjet pumps. Jet Edge offers both direct-drive pumps or hydraulic intensifier pumps, available in 30-280 HP models. The BOSS-CUTTER is controlled with a Windows PC and includes FlashCut Pro-Series Stepper Controller, FlashCutCNC software and IGEMS path generation software.
Jet Edge X-Stream Waterjet Intensifier Pump
Jet Edge's 100 HP (75 kW) X-Stream xP90-100 waterjet intensifier pump supports 75 KSI (5200 bar) continuous operating pressure. The X-Stream achieves much faster cutting speeds and drastically lowers operating costs compared to traditional 60 KSI (4100 bar) waterjet pumps, enabling users to increase productivity and reduce part costs.
The X-Stream produces 50% more pressure than a 60 KSI (4100 bar) intensifier pump, resulting in a 40-50% increase in productivity for many materials. Compared to a 60 KSI (4100 bar) pump, typical operating pressures of 75 KSI (5200 bar) use 30% less water, 30% less power and up to 50% less abrasive, resulting in a 40% reduction in operating costs. The xP90-100 is capable of producing flow rates of 1.45 gpm (5.49 L/m) and supports up to a .017" (.43 mm) orifice. Fittings and tubing are rated for 100 KSI (6900 bar). The X-Stream is backed by nearly 10 years of extensive research and development in hyper-pressure technology. The X-Stream also is available in a 50 HP (37 kW) model.

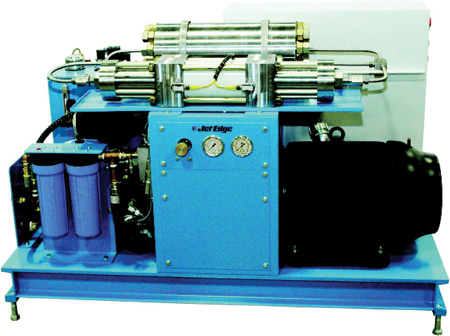

Jet Edge iP60-30 Waterjet Intensifier Pump
Jet Edge's new iP60-30 60,000 PSI (4100 bar), 30 HP (22 kW) hydraulic waterjet intensifier pump is designed for waterjet shops that desire the reliability of a hydraulic intensifier pump, but have limited power. The iP60-30 draws only 37 full load amps at 460 vac (60 Hz) or 74 full load amps at 230 vac (60 Hz). It is capable of producing 0.6 gpm (2.3 L/m) of ultra-high pressure water at a continuous operating pressure of 55,000 PSI (3800 bar). "Economically priced and easy to maintain, the iP60-30 is ideally suited for rural shops, R&D labs, schools and small budget-conscious waterjet cutting shops," said a company spokesperson.
Like all Jet Edge intensifier pumps, the iP60-30 features a reliable tie-rod design that eliminates threads on the high pressure cylinders, end caps and hydraulic cylinders. This reduces the likelihood of cracking and increases component life. Matched metal components prevent galling of hydraulic components. The iP60-30 includes a hydraulic accumulator to provide smoother hydraulic pressure, reduce spikes and prolong hydraulic pump life.
"Jet Edge offers the widest range of waterjet pumps in the industry. Its pumps include hydraulic intensifier pumps and direct drive pumps. 36 KSI (2500 bar), 60 KSI (4100 bar) and 90 KSI (6200 bar) models are available from 30-280 HP (22-208 kW). Electric and diesel models are available," said the spokesperson.
Waterjet Closed Loop Water Filtration System
Jet Edge's Waterjet Closed Loop Filtration System eliminates the need for a drain by filtering and reusing water. A closed-loop filtration system prevents the introduction of hazardous materials into drainage systems, protects the waterjet pump, maximizes orifice life and reduces water/sewage costs.
