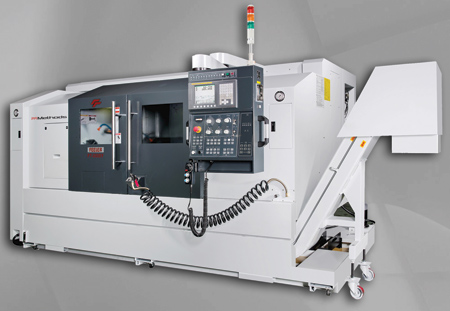

Methods Machine Tools, Inc. has expanded its FEELER FT-Series high performance CNC turning centers line with the FT-250SY.
"The FT-250SY features a true Y-axis with 100 mm (+/- 50 mm) of travel, which provides increased rigidity and a more robust machining environment," said a company spokesperson. "Also, by offering an 8-inch sub-spindle in addition to the primary 10-inch spindle, the FT-250SY provides more capacity than competitive turning centers."
For improved vibration dampening when turning in hard materials, including interrupted cutting, the FT-250SY features a single-piece structure with boxways, 45° slant bed and robust base. "Extra rigidity from a heavy-duty 12-station turret results in high metal removal rates and enhanced finishes while ensuring long term accuracy," said the spokesperson. "For maximum integrity, FEA analysis is used to ensure a solid machine base with excellent overall structural rigidity and stability. The machine also offers enhanced capacity with a 30 HP, 3,500 RPM 10-inch (chuck diameter) primary spindle in addition to a 20 HP, 4,500 RPM 8-inch (chuck diameter) sub-spindle."
The FEELER FT-250SY offers X-axis travel of 8.2" +/- .3" (210 mm +/- 10 mm), Y-axis travel of 3.9" +/- 2" (100 mm +/- 50 mm) and Z-axis travel of 41.3" (1,050 mm). The machine comes standard with a FANUC 31i-TB CNC control.
A BMT-65 tool system features a solid interface for tool holding. For maximum machine component longevity, a fully enclosed CE cabinet prevents dust and fumes from entering.
FEELER machines are manufactured by Fair Friend Group (FFG) and include extensive design and engineering by Methods.
For more information contact:
Dale Hedberg
Methods Machine Tools, Inc.
65 Union Avenue
Sudbury, MA 01776
978-443-5388
sales@methodsmachine.com
www.methodsmachine.com
