Dimensional Metrology and Wireless Gauging Products



Mahr Federal featured products include the MarSurf PS 10 Roughness Measuring Unit, the MarShaft SCOPE 250 plus and Mahr Federal's extensive wireless data transmission capability.

Mahr Federal will showcase three key products from its line of dimensional metrology and gauging products. Featured products include the MarSurf PS 10 Roughness Measuring Unit, the MarShaft SCOPE 250 plus and Mahr Federal's extensive wireless data transmission capability.

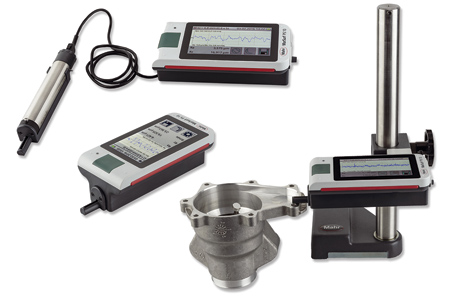

The MarSurf PS 10 from Mahr is engineered to be an economical and practical roughness measuring unit for mobile use. Using a smartphone-like 4.3" TFT touchscreen display, operation is fast, intuitive and user-friendly. The new generation MarSurf PS 10 design measures 31 roughness parameters, offers a convenient list of "favorite" functions in the display and is designed to provide laboratory level performance on the shop floor.

The MarShaft SCOPE 250 plus is a recent addition to Mahr's growing family of optical shaft measurement systems. Designed to provide fast, accurate and fully automatic measurement of smaller shafts and turned parts directly on the shop floor, the MarShaft SCOPE 250 plus features an accurate matrix camera with four million pixels. The system measures parts up to 250 mm in length and 40 mm in diameter. It features a maximum permissible error (MPE) of less than 1.5 microns + L/40 when measuring diameter and 3 microns + L/125 when measuring length.

Mahr Federal's line of mechanical comparative gauges can now be configured for wireless data transmission with the addition of a MarCator 1086 or 1087 wireless digital indicator. "Portable and benchtop mechanical gauges are key assets wherever fast and accurate part inspection is required, and mechanical comparative gauges from Mahr Federal have been mainstays in machine shops and high production facilities for more than a century," said a company spokesperson. The line includes a wide array of snap gauges, I.D. and O.D. gauges, fixed and adjustable bore gauges, as well as depth and comparator stands. The addition of wireless digital indicators is intended to make these gauges faster and more productive, speeding part inspection, reducing the complexity of data collection and improving the quality control process.

A full range of other Mahr Federal handheld gauges and dimensional metrology products will also be on display.

For more information contact:

Mahr Federal Inc.

1144 Eddy Street

Providence, RI 02905

800-343-2050 / 401-784-3100

information@mahr.com

www.mahrexactly.com

EASTEC Booth 3019
