Compact and Flexible Horizontal CNC Lathe

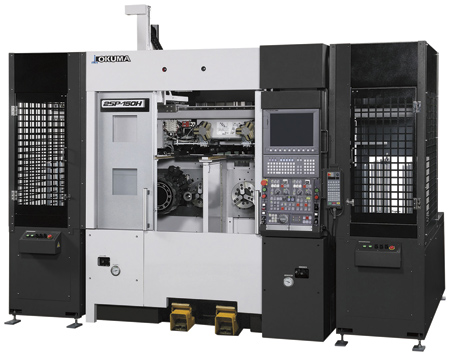

Okuma's 2SP-150H horizontal twin spindle lathe offers high metal removal rates in a small space and is suitable for small part CNC machining. The user-friendly front facing spindles allow easy and fast access to the workpiece and tooling. By adding a high-speed 3-axis Okuma gantry loader, parts can be loaded and unloaded automatically. The dual spindles and gantry loader reduce cycle time and maximize productivity.

The integral bed and base, cross slide, headstock, tailstock and turret form a balanced rigid structure. Robust ball screws generate slideway movement to both axes. The 2SP-150H is equipped with a 6" or 8" chuck and optional 6,000 RPM spindle speed for increased flexibility. Okuma's Intelligent Technology Thermo-Friendly Concept is a standard feature and achieves enhanced thermal stability and accuracy.

The 2SP-150H has no machine obstructions so chips fall directly onto a perforated chip pan, allowing coolant to flow in to the coolant tank. An optional lift-up chip conveyor is available for large machining jobs.

Key features of the Okuma 2SP-150H horizontal lathe:

  • Max turning diameter o150 mm (o5.91")
  • Spindle nose type 140 flat
  • Speed range 50 ~ 4,500 RPM
  • Standard power 11/7.5 kW (15/10 HP)
  • Rapid traverse XZ 24 m/min (945 IPM).
  • Features of the Okuma gantry loader:

  • Drive 3-axis servo (XYZ)
  • Working range X: 2,558 mm (100.71") (beam over both ends)
  • Working range YZ: 500 x 210 mm (19.69" x 8.27")
  • Rapid traverse (XYZ) 150 x 120 x 55 m/min (492 x 394 x 180 FPM)
  • Hands 3-jaw chuck; jaw stroke: o30 mm (1.18").

For larger turning diameter work, up to 250 mm, this configuration is also available as the 2SP-250H.

For more information contact:

Okuma America Corporation

11900 Westhall Drive

Charlotte, NC 28278

704-588-7000

www.okuma.com
