HMC Built for Large, Heavy Part Production

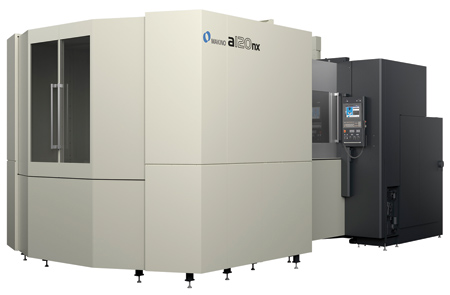

Makino has announced its newest addition to the nx-series, the a120nx horizontal machining center (HMC). As the largest machining platform within the nx-series to date, this machine is built to take on oversized structural components for industrial equipment, diesel engines and semiconductor manufacturing while delivering high levels of speed and accuracy.

"You cannot approach big parts the same way you would any other part, and that is why everything about the a120nx is sized for heavy-duty manufacturing," said John Einberger, Product Line Manager at Makino. "We wanted to employ the proven designs of our other nx-series machines, such as three-point leveling and tiered column design, while ensuring that the machine could mechanically handle the unique challenges of large workpiece machining processes."

The a120nx features X-, Y- and Z-axis travels of 74.8", 63" and 66.9" (1,900 mm, 1,600 mm and 1,700 mm), and the machine's standard large pallet size of 39.4" by 39.4" provides capacity for parts weighing up to 11,000 lbs. The machine's automatic pallet changer switches from one pallet to the next in 38 seconds, minimizing non-cut times for high levels of productivity. Capable of storing up to 204 tools of wide-ranging sizes and designs, the a120nx accommodates tools up to 35.4" long, 14.0" in diameter and weighing up to 77 lbs. Tools are loaded into the automatic tool changer (ATC) from an easily accessible, ergonomically friendly exterior loading station to prevent operator fatigue.

At the foundation of the machine is a three-point supported bed casting to ensure all points are stable and contacting the floor. Developed to maintain the machine geometry and alignments, this design characteristic of the nx-series machines simplifies installation and enables easy relocation of the machine. "Building on the rigidity of the bed casting, the a120nx uses a unique tiered column design that delivers greater resistance to Z-axis cutting forces throughout the work envelope," said a company spokesperson. "Robust cross roller-style B-axis table bearings work in concert with a high force rotary clamping system to ensure stable cutting throughout the machine's expansive work zone."

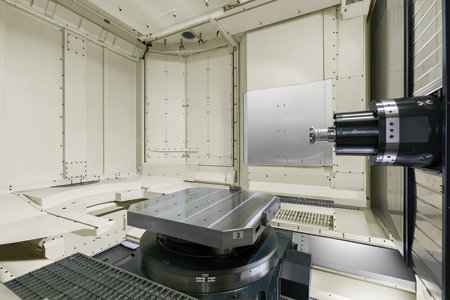

The a120nx is equipped with Makino's four cone pallet location and clamping system that delivers a secure 46,500 lbs. of force on the pallet. This clamping capability, combined with all pallets built to a master pallet, is designed to eliminate deflection. An engineered precision air-blow system provides locating surfaces cleaning and pallet clamp confirmation as standard features.

Larger parts typically mean larger features, too. Tool length, diameter and weight capacities of the a120nx support processes that feature the use of large face mills, boring bars and line-bar tooling.

To further help ensure ideal geometry and accuracy, the a120nx has a number of systems in place to manage the heat generated by rapid traverse of 2,126" per minute. The ball screws are core-cooled in all axes to give consistent accuracy during continuous production. Moreover, the ball screws are all dual supported and pre-tensioned to provide dynamic positioning repeatability. Feature-to-feature movement distances on large parts are typically much greater, so rapid traverse rates were increased for the a120nx in order to cover these expansive distances quickly.

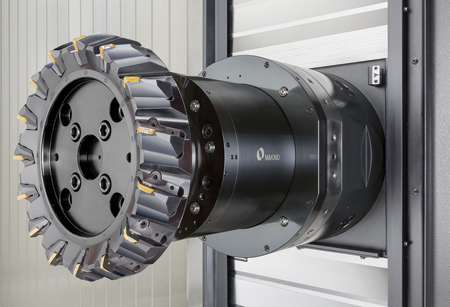

The a120nx is designed to improve productivity in cutting and non-cutting performance. "The standard high torque 8,000 RPM spindle boosts continuous power levels by 19% over levels typical to machines of this class," said the spokesperson. With 50 continuous (74 peak) horsepower available, this spindle is suited for heavy roughing of iron castings and hard metal applications. In addition, the spindle features improvements in acceleration and deceleration due to its high duty rated performance characteristics that are designed to reduce rigid tapping times by up to 30%. Also available is an optional 18,000 RPM high power spindle suited to high metal removal rate machining of light alloy structural components.

"Chip and coolant management features are often overlooked and result in interrupted operations, increased labor costs, machine damage, part quality issues and reduced tool life," said the spokesperson. "The a120nx enables shop owners to avoid these challenges with supplementary management features, including a sloped surface to remove obstacles between the workpiece and an external chip conveyor, letting chips fall freely." The trough design facilitates rapid chip and coolant evacuation and reduces maintenance needs with a solid panel Z-axis cover design. A standard cyclonic filter provides clean coolant to the through spindle coolant pump and acts as a secondary coolant filter, polishing coolant in the main tank.

The a120nx comes to the market automation ready, being fully compatible with Makino's versatile multi-machine, multi-pallet MMC2 flexible manufacturing system, complete with Makino's MAS-A5 cell controller.
