Cylinder Hone Updated with Siemens Control, Safety-Integrated Drives

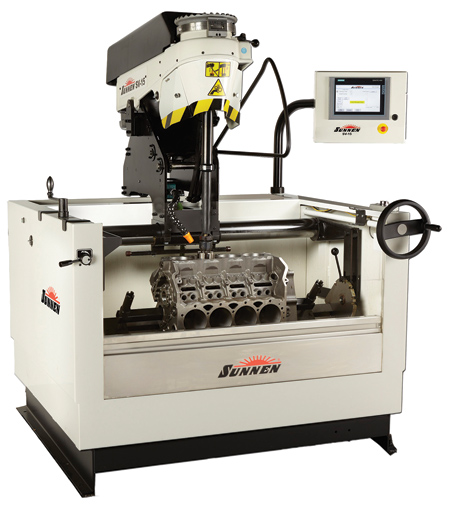

Sunnen's new SV-15 honing machine, successor to the Cylinder King machine, has been updated with a new 9" Siemens touchscreen PLC to provide more features, convenience, precision and consistency.

The multi-lingual control provides a real-time display of the bore shape, allowing the operator to confirm bore straightness and make on-the-fly adjustments to correct taper or simply confirm the action of the auto-dwell feature that efficiently concentrates honing action in tight spots. "The control automatically switches from roughing cycle to finishing cycle for fast processing with the optimum finish, geometry and crosshatch angle," said a company spokesperson. "Precise zero shutoff ensures consistent size control, bore after bore. One hundred set-ups can be stored in the control, which can be backed up via the control's USB port."

The SV-15 is a versatile automatic cylinder hone capable of handling bore diameters from 0.750" to 8" (19 - 203 mm) and lengths up to 11" (279 mm) for all types of blocks, from single-cylinder and high-performance engines to diesel truck and industrial blocks up to 46" (1,168 mm) long. The SV-15's standard multi-position rollover fixture handles inline and most 60°/90° V-type automotive blocks, and the optional CK-6200 clamp kit expands the range of blocks that can be accommodated.

With separate spindle and stroker motors - 3 HP/2.25 kW and 1 HP/ 0.75 kW - the SV-15 can run standard Sunnen tools as well as the DH-series diamond hone head. Encoder-controlled stroker position helps ensure precision overstroke control and repeatability. "High surface contact with the multi-point DH tool produces the roundest bore possible for excellent sealing with today's thinner rings. Variable spindle and stroker speeds - adjustable while in cycle - enable infinite crosshatch angles for any bore diameter and cylinder length combination," said the spokesperson.

The machine's updated safety features now include Siemens Sinamics drives for fast response times, reduced maintenance and long-term reliability. The honing fluid reservoir/filter system holds 55 gallons (206 liters). Removable settling tanks, screens, filter cartridges (two) and filter status gauge are designed to simplify maintenance.

For more information contact:

Sunnen Products Company

7910 Manchester Rd.

St. Louis, MO 63143

800-325-3670 / 314-781-2100

sales@sunnen.com

www.sunnen.com
