Milling and Turning Solutions to be Showcased



BIG KAISER, a provider of high-precision tooling systems and solutions, will showcase a new super-slim milling chuck and a boring bar dedicated to eliminating vibration and maintaining an efficient cutting speed at EASTEC in booth 5248.

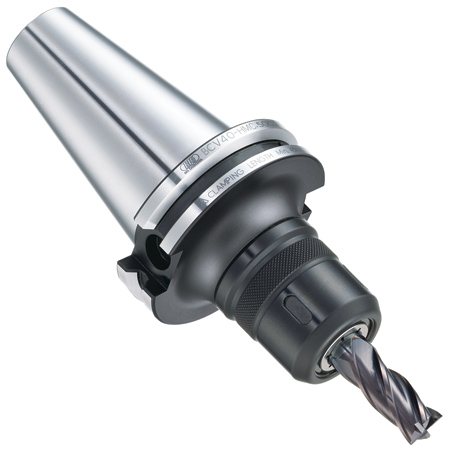

HMCJ, the newest addition to the HMC series, is a super-slim milling chuck with a peripheral coolant supply, designed to support heavy-duty and finish end milling tasks with power and precision using O1/2" or O12 mm cutters. It features a clamping bore with fine slots surrounded by hundreds of needle bearings, which ensures concentric, precise and smooth clamping when the nut is tightened. "The HMCJ applies the highest gripping force to the cutting tool shank of any comparable milling chuck in its class, and five to six times greater compared to collet chucks," said a company spokesperson.

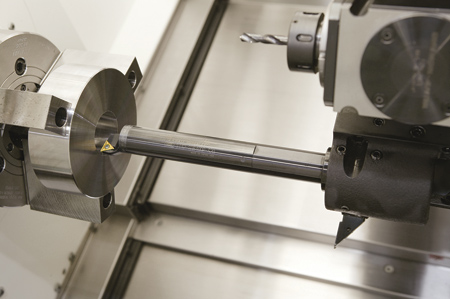

BIG KAISER will also highlight the Smart Damper boring bar for lathe applications. A heavyweight, strengthened damping mechanism integrated into the tool holder functions as both a dynamic counter and friction damper. It instantaneously absorbs vibration and eliminates chatter helping to achieve higher machining accuracy, better surface finishes and increased metal removal rates for higher productivity at critical machining depths. It is also designed with the capability of supplying coolant through the body directly to the cutting edge.

The Smart Damper boring bar features three modular insert holders, optimized for right-hand I.D. turning with ISO standard inserts at a minimum diameter of O1.58". Metric bodies are available in O32 and 40 mm, with inch versions at O1.250 and 1.500". With this system, boring at depths of approximately 7xD is well within reach.

For more information contact:

BIG KAISER Precision Tooling Inc.

2600 Huntington Blvd.

Hoffman Estates, IL 60192

888-TOOL-PRO / 224-770-2999

bigkaiser@us.bigkaiser.com

www.bigkaiser.com

EASTEC Booth 5248
