At WESTEC 2015, Suhner will feature its BEA 16 spindle machining unit with an all-new drive and control concept. The objective of this new development was the integration of the latest servo drive and control technology from Bosch Rexroth. Software developments additionally allow the user to program six different basic cycles without prior knowledge of CNC.
"By visualizing these six cycles - drilling, combined drilling (drilling and thread cutting with the one tool), thread cutting, drilling with chip removal, drilling with jump function, undercutting - the unit has become easy to program," said a company spokesperson. "Plus, should the required machining cycle not be found among the standard selections or prove more complex, the unit can be switched to sentence programming."

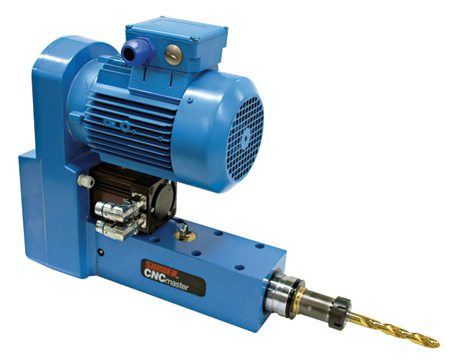

The BEA 16 machining unit is a precision device from the Suhner spindle machining unit series designed for continuous use in multiple shift operations. The BEA 16 has a drilling capacity of 16 mm Ø in 450 N/mm2 steel. The max feed path is 140 mm, and the max speed is 500 RPM.
"Today, rising production piece numbers and greater workpiece complexity with all-round machining are leading to a renaissance of the special machine," said the spokesperson. "However, today's special machines are no longer being used as purely single-purpose solutions, but rather for whole part families. These require different machining cycles, feed speeds, feed paths and rotating speeds and, of course, must allow fast retooling. The BEA 16 is designed to meet these requirements."
For more information contact:
Suhner Industrial Products Corp.
Hwy. 411 S. at Suhner Drive
P.O. Box 1234
Rome, GA 30162-1234
706-235-8046
info.usa@suhner.com
www.suhner.com
WESTEC 2015 Booth 551
