Precision Boring Mill for Aerospace and Energy

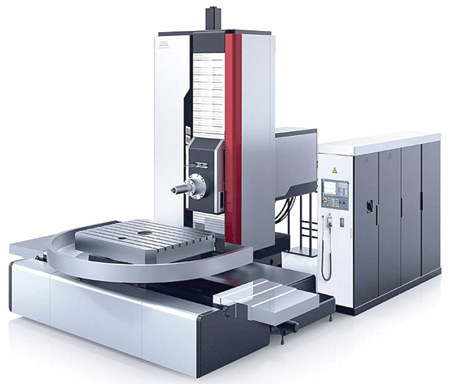

SMTCL Americas offers the EBC110 table-type boring mill that is engineered for manufacturers of large parts. The machine was designed in Germany and utilizes the latest industry technology combined with years of experience from two boring mill providers, Schiess and SMTCL. "The result is an ultra rigid, extremely powerful, highly accurate and reliable boring mill," said SMTCL's Chief Operating Officer Jerry McCarty.

The machine features a 3,000 RPM CAT 50 spindle with a heavy-duty gearbox for high torque. The 110 mm (4.3") spindle also comes standard with coolant through the spindle. To help ensure accuracy and repeatability, the machine features German-made Heidenhain scales on the X, Y, and Z axes and a precision 49" x 55" full B-axis rotary table capable of holding 11,000 lbs. The machine is a box way design with travels of 78" in X, 59" in Y and 47" in Z. The machine also features a spindle quill that provides an additional 21" of W-axis travel.

This CNC boring mill is controlled by a FANUC 0i-MD control with 10.4" screen, USB, PCMIA and Ethernet capabilities, and a remote manual pulse generator.

For more information contact:

SMTCL Americas

17038 E. Gale Ave.

City of Industry, CA 91745

626-667-1192

info@smtcl-americas.com

www.smtcl-americas.com
