Redesigned Clean Air Gun Maximizes Fume Extraction
September 1, 2015

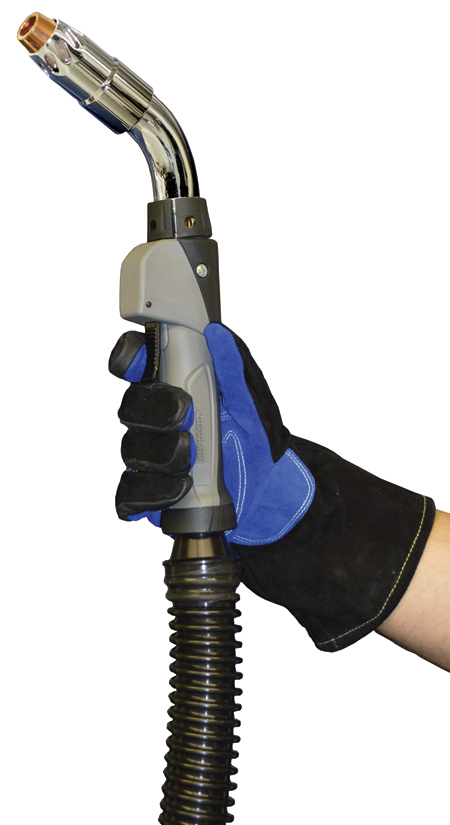

Bernard has redesigned its new Clean Air Fume Extraction Gun to be lighter and smaller, providing welding operators with a more comfortable option for reducing weld fume and smoke.
Bernard has redesigned its Clean Air Fume Extraction Gun to be lighter and smaller, providing welding operators with a more comfortable option for reducing weld fume and smoke. The lighter-weight and smaller gun is nearly the same dimensions as a regular Bernard Semi-Automatic MIG Gun and is designed for almost any medium- to heavy-duty solid or flux-cored welding application.
To optimize weld fume capture, gas flow and weld access, the Clean Air Fume Extraction Gun features an easy-to-slide nozzle shroud on the front of the gun that adjusts to one of four fixed positions. The small size of the vacuum chamber further improves welding operator comfort and control by providing good joint access and visibility, while a 360° vacuum hose swivel on the rear of the handle improves flexibility and reduces wrist fatigue. A rubber overmold on the handle adds to operator comfort and control.
The Clean Air Fume Extraction Gun has a crush- and snag-resistant vacuum hose that maximizes maneuverability and limits hang-ups on nearby equipment or fixtures. The hose is durable enough to eliminate the need for a bulky vacuum hose cover in most applications and features threaded connections for easy replacement.
Bernard offers the Clean Air Fume Extraction Gun in 400, 500 and 600 amp models with a 45° or 60° neck bend to maximize wire feeding. The gun is compatible with Centerfire, Quik Tip or TOUGH LOCK consumables, as well as QUICK LOAD liners or universal conventional liners, and can be paired with vacuum systems from most major manufacturers.
For more information contact:
Bernard Welding Equipment
449 West Corning Road, Box 667
Beecher, IL 60401
855-MIGWELD / 708-946-2281
info@bernardwelds.com
www.bernardwelds.com
