CNC Coordinate Measuring Machine
September 1, 2015

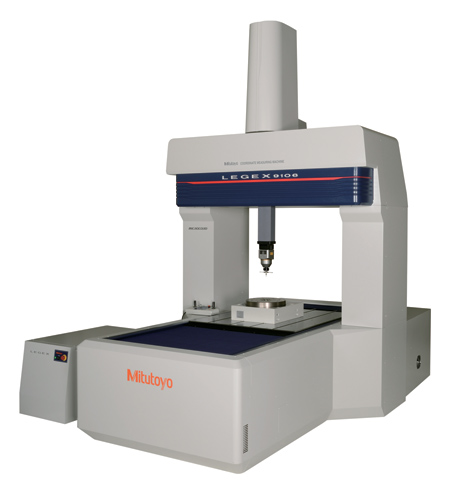

Mitutoyo America Corporation has released the LEGEX ultra-high accuracy CNC coordinate measuring machine (CMM). The LEGEX 4 is designed for accuracy in length measurement of E0,MPE = (0.28+L/1,000) um.
"With the unceasing advancement of scientific and industrial technologies and driving demand for significant improvements in high-accuracy manufacturing, Mitutoyo took a fresh approach when it came to accuracy, starting from the elemental technology level and working upward, with the aim of eliminating all possible sources of measurement error," said a company spokesperson.
Key Features:
- Sources of static and dynamic error minimized for measurement accuracy of 0.28 um
- Fixed-bridge structure with moving table
- Base is made from spheroidal graphite (ductile) cast iron in a sealed-structure design to provide high rigidity and vibration-attenuating characteristics
- High-rigidity structure and feed mechanisms increase accuracy and improve cycle times
- Thermally symmetric structure features full covers around the main body to reduce possible impact in ambient temperature changes
- Vibration-dampening unit is standard
- An air server stabilizes the air temperature to 20 °C +/-0.1 °C.
For more information contact:
Mitutoyo America Corporation
965 Corporate Blvd.
Aurora, IL 60502
630-820-9666
info@mitutoyo.com
www.mitutoyo.com
