Planer Type Boring Mill for Large Workpieces

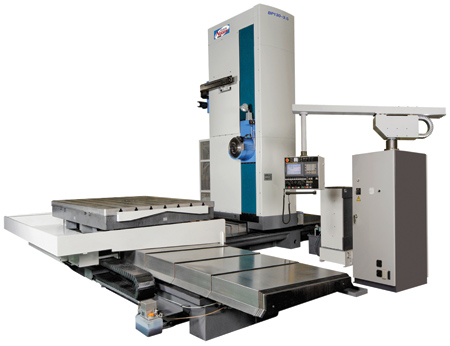

The BP130-3.5 features a generous work envelope and straightforward design for efficient work throughput. "It features heavy-duty, high quality cast iron construction throughout," said a company spokesperson. "Extra-wide solid boxways support large workpieces. Oversize ballscrews on all linear axes are precision ground and finished to deliver consistent, precise positioning even under the most demanding machining conditions."

The BP130-3.5 features a full rotary table size of 62.99" x 86.6" with a maximum workpiece load of 22,000 lbs.

X- and Y-axis travels are 137.80" x 98.43". The 5.1" boring spindle travels within the 8" milling spindle to provide a full 27.5" stroke for increased machining flexibility. W-axis thermal growth compensation provides increased accuracy. The X-axis table is of a single piece casting utilizing the accuracy and stability of a fully supported cast iron base. The B-axis is fully supported by a worm and wheel construction with scale feedback. The large worktable has seven T-slots to simplify work fixturing.

Other features include an ATC with standard capacity of 60 tools (90, 120 optional), standard 35 HP spindle motor, and micro-filtration and chip conveyor system with skimmer and chip conveyor and more.

Optional features available on the BP130-3.5 include right angle head, angular attachment, facing head, U-axis CNC controlled and pallet changer options.

The BP Series of planer type boring mills is available in four models, including the BP130-3.0 with X- and Y-axis travels of 118.11" and 78.74" up to the largest model, the BP130-5.0, with X- and Y-axis travels of 196.48" and 98.43".

SNK Nissin also has the BHP series of heavy-duty boring mills, including the BHP130-3.5 with a maximum load capacity of 44,100 lbs.

For more information contact:

SNK America, Inc.

1150 Feehanville Drive

Mt. Prospect, IL 60056

847-364-0801

info@snkamerica.com

www.snkamerica.com
