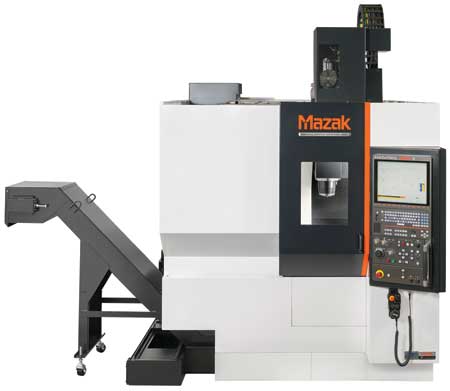

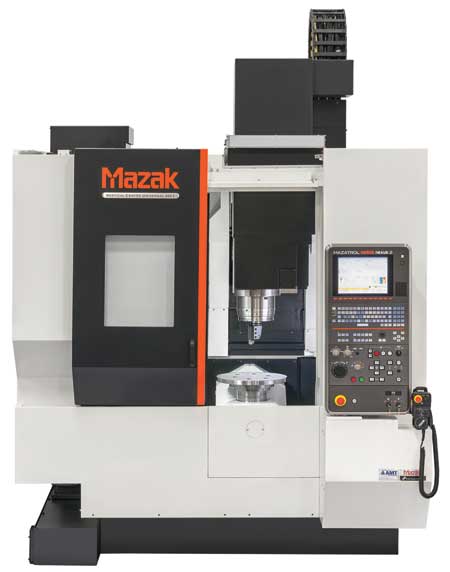

Mazak has introduced turning capabilities into its VERTICAL CENTER UNIVERSAL (VCU) Series of small-footprint vertical machining centers with the VCU 400T. The VCU 400T is designed for cost-effective small parts production.
According to the company, the VCU 400T employs a 15 HP, 10,000 RPM HSK-63A milling spindle and turning spindle with speeds between 35 and 2,500 RPM to accurately machine all common materials, including steel, aluminum and cast iron. An optional speed of 12,000 RPM is also available so users can effectively match milling spindle performance with their machining requirements.
"A cam-driven automatic tool changer is designed to reduce non-cut times on the VCU 400T by quickly exchanging tools and getting the spindle back in the cut in the shortest time possible. The reliable tool monitoring on the machine maximizes production efficiency and lowers operating costs via early problem detection. Tool storage capacities of 20 or 30 tools ensure continuous machining operation and increased versatility," said a company spokesperson.
The VCU 400T features X, Y and Z travels in 19.88" x 15.74" x 20.08", respectively, and a 945 IPM rapid traverse rate in each. Also, a full C-axis table rotation that indexes in 0.0001-degree increments is designed to provide full contouring operations.
According to the company, the Mazak MX Hybrid Roller Guide System on the VCU 400T enables the machine to deliver high levels of durability and reliability, resulting in long-term accuracy. The way system increases vibration dampening, extends tool life, handles higher load capacities and eliminates tramp oil in the coolant by utilizing a greener grease-based lubrication system.
The MATRIX NEXUS 2 CNC on the VCU 400T offers EIA/ISO and conversational programming for versatility and user-friendly operation. It also incorporates advanced functions including heat displacement control and vibration control for increased productivity through high-speed, high-accuracy machining.
The VCU 400T's footprint measures 84.65" wide x 124.21" deep x 125.04" high and features a built-in multi-tap transformer to further conserve valuable floor space.
