Thread Chaser Inserts
April 1, 2015
Seco Tools, LLC offers Thread Chaser inserts designed to meet the demanding requirements of the oil and gas industry and other industry segments requiring special threads such as API and common licensed types.

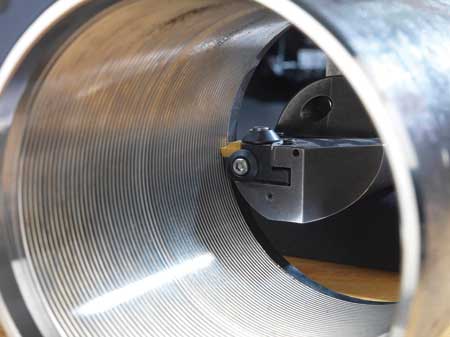

"The Thread Chaser tool features inserts for both push and pull threading of I.D. features using multi-tooth patterns for fast single- or two-pass threading," said a company spokesperson. "The system's multi-tooth inserts have precise thread patterns that generate high-accuracy, consistently perfect thread pitches for industry-specific parts and pipe materials in a wide range of hardnesses."

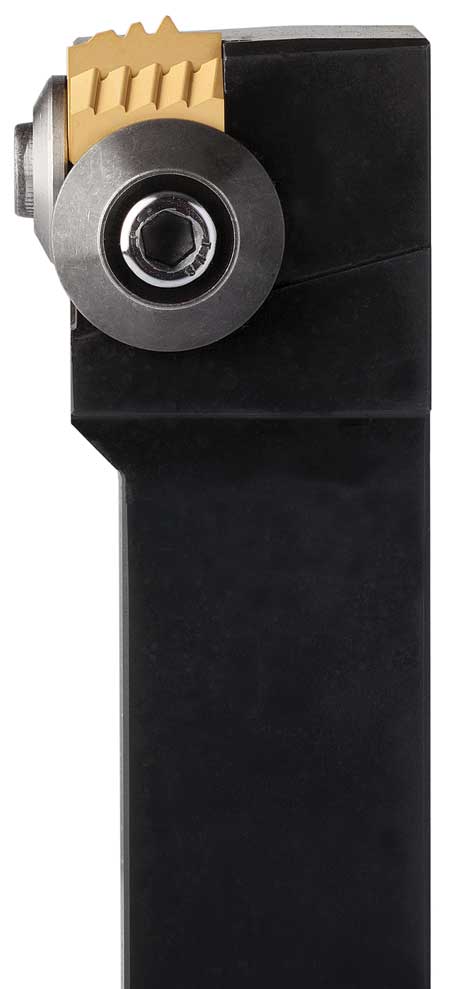

Thread Chaser inserts are designed to increase productivity by generating the thread teeth, facing and taper at the same pitch as the thread type. The tools use a substrate material and feature through-coolant holes and chip formers to direct high-pressure (up to 210 bar) coolant to the cutting edges to optimize chip formation/evacuation and extend insert life. Inserts are available in push or pull and push/pull sets of one, two or three to accommodate various thread machine types.
For more information contact:
Seco Tools Inc.
2805 Bellingham Drive
Troy, MI 48083
248-528-5444
secotools.us@secotools.com
www.secotools.com
