Retort Furnace for Heat Treating Motor Laminations

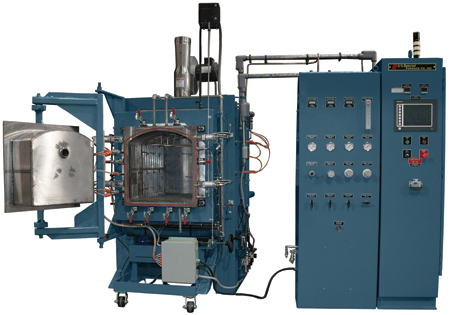

L&L Special Furnace has shipped a model XLC3348 retort furnace with an Inconel 602CA alloy retort to a leading manufacturer of motor laminations in the midwestern U.S. The furnace serves a primary role in the manufacturing of motor laminations in an atmosphere of up to 100% hydrogen. The laminations are deployed for motors in various aerospace, military, automotive, medical and industrial fields.

The model XLC3348 has an effective work zone of 23" wide by 23" high by 36" deep and uniformity of ±15 °F above 1,200 °F after optimal tuning and balancing of any gradients using digital biasing. The control system includes one control loop along with six zones of heating volume that can be adjusted to achieve the required temperature gradients.

The furnace is equipped with a controlled cooling system, which is critical to the motor lamination process. L&L also offers retort furnaces with removable retorts to meet the most stringent cooldown requirements.

The model XLC3348 satisfies all requirements for AMS2750F class 3 uniformity and type B instrumentation. The furnace features a water-cooled, front flange and door plug cart for easy handling of the door with guides. Included is a complete gas-mixing panel with independent hydrogen, nitrogen and emergency nitrogen lines. The process gas lines are required copper refrigeration lines along with stainless steel to help ensure a very low dew point in the process gasses, which is critical to the process.

A Honeywell HC900 hybrid PLC-process controller with CR10 operator interface is included and clearly displays operating state, alarm conditions and programming aspects of the process logic parameters. This is completely set up, configured and logic-tested prior to shipment.

The control panel is a floor-standing NEMA12 enclosure with fused disconnect and all required fusing and wiring. The electrical system is designed in compliance with NFPA86 guidelines for safety and includes all required electrical components, placard and paint schemes.

All L&L furnaces can be configured with various options and be specifically tailored to meet various thermal needs. The company also offers furnaces equipped with pyrometry packages to meet the latest revision of ASM2750.

Options include a variety of control and recorder configurations. A three-day, all-inclusive start-up service is included with each system within the continental U.S. and Canada.

For more information contact:

L&L Special Furnace Co., Inc.

20 Kent Road

Aston, PA 19014

610-459-9216

sales@llfurnace.com

www.llfurnace.com
