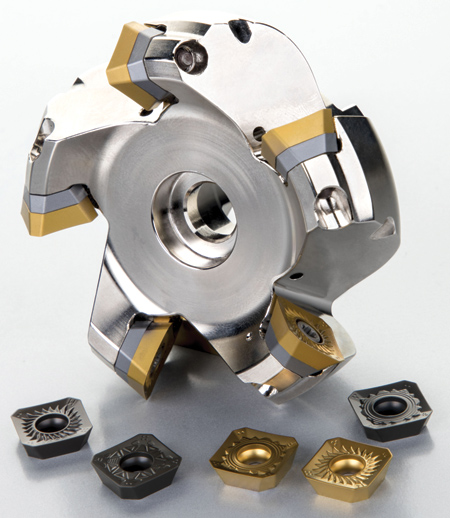

Versatile Face Milling



Dormer Pramet has added five variants of square shaped positive inserts for depths of cut up to 6.4 mm to its Pramet brand. The range is suitable for a variety of general engineering and maintenance and repair operations (MRO) machining, with several application-specific geometries and grades available for machining any workpiece material.

The Pramet SDMT 13 pressed inserts are designed with economy in mind. Its M geometry is designed for light and medium cuts, while R geometry is focused more on roughing. Both geometries are versatile for milling steels, cast irons and hard steels.

The Pramet SDET 13 precision ground inserts are dedicated for usage in specific workpiece material groups. Sharp F geometry is suited for secure machining of stainless steels and heat resistant super alloys. A polished, extra sharp FA geometry allows for productive machining of nonferrous materials. An additional wiper insert XDET 13 is also available to provide high surface quality in larger diameter cutters and high feedrates.

A wide assortment of cutters is available to support the new range of inserts. The (I)SSD13F comes in Weldon and Shell styles, with sizes ranging 32 mm to 250 mm (1.25" to 10.00 inch).

A carbide shim on the insert seating gives extra stability and process security while protecting the cutter body for high durability. These cutters also utilize internal coolant delivery for improved chip evacuation to achieve high surface quality.

For more information contact:

Dormer Pramet

1483 Dogwood Way

Mebane, NC 27302

800-877-3745

cs@dormerpramet.com

www.dormerpramet.com
