Clamping Device Changeover in Less Than One Minute
August 1, 2022

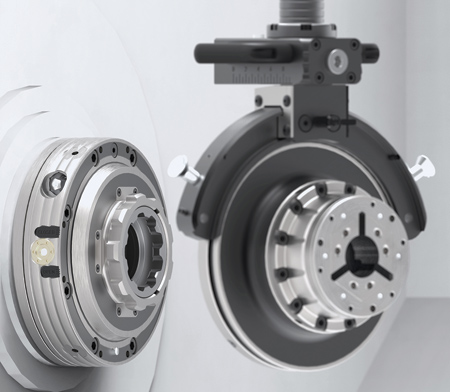

HAINBUCH has introduced the centroteX S clamping device changeover system. The mini version has all the centroteX technology with an additional advantage: actuation takes place with just one screw, saving set-up time.
This system was designed to enable a robot to quickly change the clamping device. With lesser tightening torque than is required with the large variant, the centroteX M, the centroteX S can be assembled more quickly with high repeatability while offering more ergonomic operation. With its diameter of just 52 mm and the small outer diameter of 224 mm, centroteX S is a suitable quick change-over system for machines with a small workspace.
The machine adapter is permanently mounted on the spindle. Subsequently, the adapter and the adapter counterpart that is equipped with the clamping device can be exchanged within the shortest time possible. The result: shorter set-up times, fast ROI and increased cutting times. The centroteX systems can be utilized with either a HAINBUCH supplied chuck or the customer's existing chuck.
For more information contact:
HAINBUCH America
W129 N10980 Washington Dr.
Germantown, WI 53022
800-281-5734 / 414-358-9550
sales@hainbuchamerica.com
www.hainbuchamerica.com
IMTS West Building, Level 3
Booth 431636
