Centerless Grinder, Sinker and Wire-Cut EDMs



Kent USA will feature a centerless grinder, sinker EDM and wire-cut EDMs at IMTS 2022.

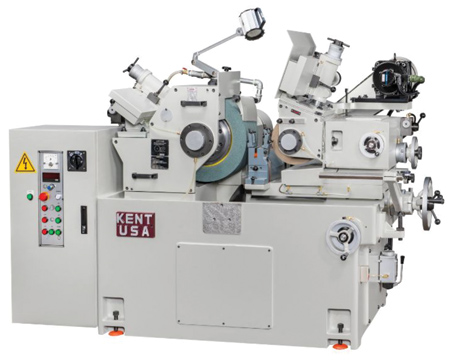

KCG-18S Centerless Grinder

The KCG-18S centerless grinder is designed for production manufacturing. Features include:

  • 0.04" to 2" diameter grinding capacity with standard work rest
  • Grinding wheel size 18" x 8" x 9"
  • Regulating wheel 10" x 8" x 4.38"
  • 15 HP main grinding wheel motor
  • Compact design for minimum use of shop floor space
  • Easy to use controls for greater work efficiency
  • Automatic lubrication with safety interlock to prevent machine operation when there is no lubrication present
  • Hydraulic dresser for grinding and regulating wheels help ensure smooth and evenly trued wheels.

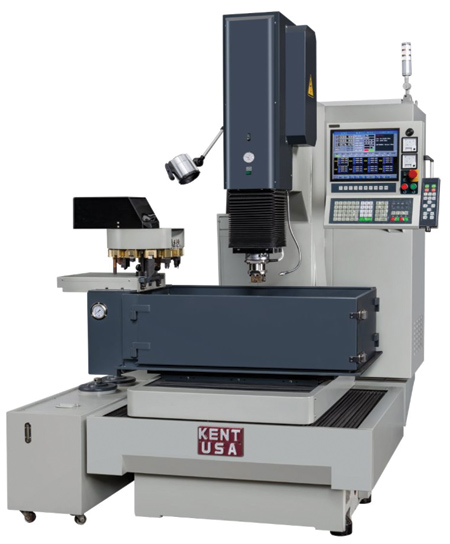

KEB-600L Sinker Type EDM

The KEB-600L is a CNC EDM with over 2,200 lbs. of workload.

Features include:

  • 60 amp power supply capacity
  • Fully ribbed solid casting for increased rigidity and stability
  • Built-in 3-axis DRO system integrates with machine control for positioning and auto Z-depth setting in for simple programming
  • Maximum 256 programmable steps for setting all machining parameters enables a complete start to finish auto-cycle for complex jobs
  • MOSFET electric discharge circuit design is designed for fast burning, reduced electrode wear and uniform surface finish applications
  • Precision linear ways with lubricated ball screws and AC servo motors on X-, Y- and Z-axis
  • Single or 3-axis lateral movement, round orbiting, square orbiting, etc.
  • Multicavity machining, Auto Home Function
  • Side Loran function (X, Y-axis), Angle Vector machining function and ARC clockwise and ARC counter-clockwise function
  • The module is mounted inside the spindle, which allows for greater Z-axis clearance
  • With a C-axis accessory, the electrode can turn an arbitrary angle.

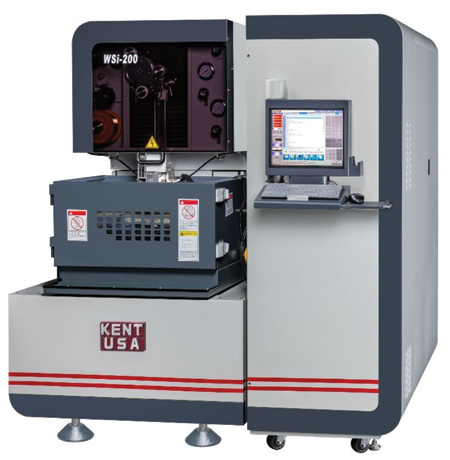

WSI-200 Wire-Cut Submerge Type EDM

The WSI-200 is especially suited for schools, aerospace and medical manufacturers and others due to its capabilities and compact size.

Features include:

  • 22" x 18.5" x 5.9" max. workpiece size
  • 661 lbs. max. workpiece weight
  • 8.27"/7.87" X/Y-axis travel
  • 6.1" Z-axis travel
  • 1.8"/1.8" U/V-axis travel
  • Machine structure designed and analyzed by CAE system for high structural rigidity
  • U-, V-, Z-axis strategically placed on upper column for enhanced spindle rigidity and precision
  • Magnet power clutch wire-receiving systems
  • ATW auto threading wire system
  • Permanent generator control system for wire tension stability
  • Accurate linear guide ways coupled with patented linear and block design.

For more information contact:

Kent Industrial USA

1231 Edinger Ave.

Tustin, CA 92780

800-KENT-USA / 714-258-8526

sales@kentusa.com

www.kentusa.com

IMTS North Building, Level 3

Booth 236736
