Linear Guide Vertical Machining Center

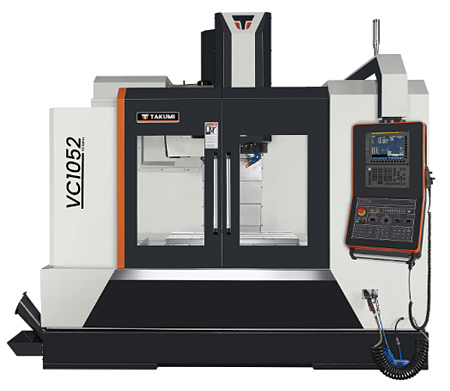

The Takumi VC1052 is a fast, 3-axis linear guide machining center designed for customers focusing on batch or production work. The Takumi VC series machining centers are built with direct-coupled motors and double anchored ball screws to eliminate lost motion.

The VC1052 (XYZ travels: 41.7" x 20.5" x 24") is a linear guide VMC that includes a 15,000 RPM inline spindle with a BBT40 spindle taper. The VC series by Takumi was designed for customers focusing on batch or production work.

The Takumi VC1052 is equipped with the latest FANUC 0i-MF control with 1 GB data server. Optional accessories include a 4th axis rotary table, 32 tool holder conversion and part probe and tool probe measurement systems.

"Takumi USA has partnered with Renishaw to be the first CNC machine tool brand to offer Renishaw's Set and Inspect app for the FANUC control," said a company spokesperson. "The Set and Inspect app will help job shops of all sizes be more efficient and profitable by making it possible for anyone with a part probe to immediately add inspection probing to their process and reap the full financial benefit of probing on a machine tool. Unlike traditional programming software, Set and Inspect is so easy to use that virtually no training is required: the software's intuitive interface guides the user through the process of creating a probing cycle, automatically generates the required machine code for the probing cycle and sends it to the control."

This feature is available on the Takumi H-Series 3-axis high-speed double-column CNC machines, the Takumi V-Series 3-axis box way CNC machines and the VC-Series 3-axis heavy-duty general purpose machining centers.

VC1052 specifications:

  • Table size: 45.7" x 20.5"
  • Table load: 1,345 lbs.
  • XYZ travels: 41.7" x 20.5" x 24"
  • Rapid feed/cutting feed: 1,417 IPM/472.2 IPM
  • Spindle taper: BBT40
  • Spindle RPM: 15,000
  • Spindle HP: 20.4 HP
  • ATC stations: 24
  • Machine weight: 12,787 lbs.

For more information contact:

Takumi USA

7220 Winton Drive

Indianapolis, IN 46268

844-302-3792

info@takumiusa.com

www.takumiusa.com

IMTS South Building, Level 3

Booth 338319
