Compact 5-Axis CNC Machines for Diverse Applications
August 1, 2022

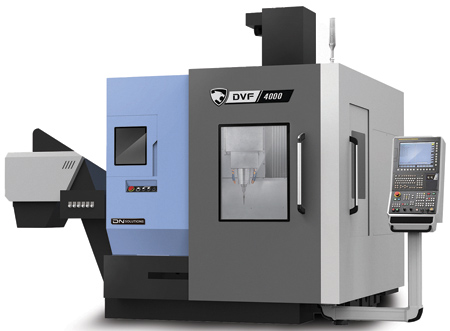

DN Solutions (formerly Doosan Machine Tools) will introduce the DVF 4000, the latest member of its DVF family of vertical 5-axis machining centers, at IMTS 2022. The DVF Series is made up of compact 5-axis CNC machines that are fully packaged to handle a customer's diverse 5-sided or simultaneous 5-axis applications.
The DVF 4000 is the smallest offering in the DVF line. "It is the perfect choice for shops that produce parts for the medical industry and want to move up to the next level of productivity and quality without spending half a million dollars on a CNC machine tool," said a company spokesperson.
The DVF 4000 comes standard with an 15,000 RPM direct coupled spindle powered by a 25 HP (18.5 kW) motor that generates 86.98 ft-lbs. (117.8 Nm) of torque. A FANUC 31i-B5 Plus control makes full 5-axis simultaneous control possible, giving complete contouring capabilities.
It features a 400 mm diameter built-in rotary table that minimizes any table deflection. The rotary table is designed for ease of use and work efficiency, minimizing interference as the part is machined. An Auto Work Changer (AWC) coupled with a six-port hydraulic fixture preparation feature provides additional productivity by offering up pallets to feed the machine for unattended machining.
Each DVF Series machine comes with a 40-tool automatic tool changer that can be expanded up to 120 tools, giving the customer more tooling to tackle complex parts that have varying profiles. The oil cooled spindle controls heat to minimize thermal issues, and the DVF Series also incorporates roller LM guideways for speed and added rigidity. The machines are equipped with linear scales on the X, Y and Z axes and rotary scales on the B and C axes for the most accurate positioning and repeatability. Their compact footprint enables installation where floor space is limited or comes at a premium.
For more information contact:
DN Solutions
19A Chapin Road
Pine Brook, NJ 07058
973-618-2415
DMTA.Marketing@dncompany.com
www.dn-solutions.com
IMTS South Building, Level 3
Booth 338900
