Versatile, Productive Machining Solutions



Hurco's VMX30Di offers high performance capabilities for a variety of machining applications.

"The Hurco VM15Di combines productivity, technology and value to help job shops be more profitable," said a company spokesperson.

Hurco will feature the VMX30Di 3-axis machining center and VM15Di 3-axis machining center at IMTS.

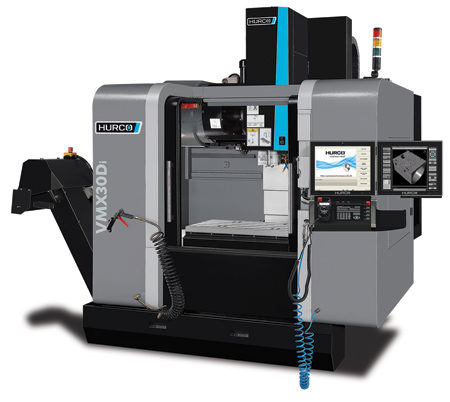

VMX30Di

"The VMX30Di (XYZ travels: 30 in. x 20 in. x 24 in.) takes CNC machining to the next level. The VMX30Di 3-axis machining center delivers speed, performance and precision to any machining application," said a company spokesperson.

With a 15,000 RPM spindle and BIG-PLUS CAT40 spindle taper, the VMXDi performance series has been designed to help job shops focusing on batch production or die/mold work be more productive and profitable.

Equipped with the new direct drive spindle, the VMXDi series offers better surface finish, quieter spindle, reduced heat transfer and less head growth. It also provides reduced chip-to-chip time and faster spindle acceleration and deceleration. To download the VMXDi Series brochure, go to hurco.com/brochures.

VMX30Di specifications:

  • Table size: 40" x 20"
  • Table load: 3,000 lbs.
  • XYZ travels: 30" x 20" x 24"
  • Rapid feed/cutting feed: 1,460 IPM/1,496 IPM/1,260 IPM
  • Tool type: CAT40
  • Spindle RPM: 15,000
  • Spindle HP: 20 HP
  • ATC stations: 30
  • Machine weight: 10,692 lbs.

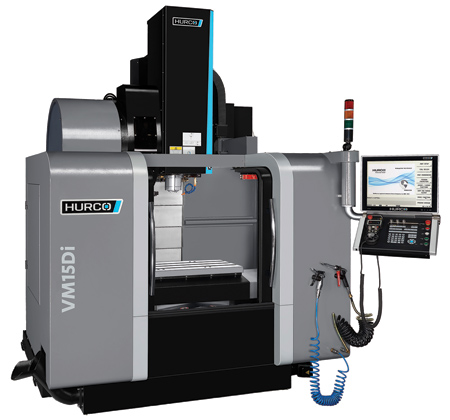

VM15Di

The new Hurco VM15Di (XYZ travels: 30" x 16" x 20")-to be introduced at IMTS 2022-is engineered to combine productivity, technology and value to help job shops be more profitable. The VM15Di 3-axis machining center reduces cutting times, heat transfer, and produces improved surface finishes due to the quick and quiet direct drive spindle and CAT40 BIG-PLUS tooling.

The Hurco VM Series milling machines offer versatility and productivity with a compact footprint, one-piece machine base and solid case iron frame. "These small CNC machines are loaded with big capacity, productivity and user flexibility," said the spokesperson.

VM15Di specifications:

  • Table size: 35.4" x 16"
  • Table load: 1,500 lbs.
  • XYZ travels: 30" x 16" x 20"
  • Rapid feed/cutting feed: 1,417 IPM/1,181 IPM
  • Tool type: BIG-PLUS #40
  • Spindle RPM: 12,000
  • Spindle HP: 22.8 HP
  • ATC stations: 24
  • Machine weight: 7,000 lbs.

Control

The Hurco VMX30Di and VM15Di are equipped with the Hurco control powered by WinMax software and the patented motion system called UltiMotion (hurco.com/ultimotion).

The control helps machinists and job shops be more productive and profitable by supporting multiple programming methods: conversational programming; NC programming; and a Hurco-specific feature called NC/Conversational Merge that optimizes efficiency even further.

The Hurco control offers 4 GB RAM, 128 GB solid state drive, and 10,000 block look ahead. To learn more about the integrated Hurco control, go to Hurco.com/winmax.

For more information contact:

Hurco Companies, Inc.

One Technology Way

P.O. Box 68180

Indianapolis, IN 46268

800-634-2416

info@hurco.com

www.hurco.com

IMTS South Building, Level 3

Booth 338319
