Live Machining Demos Showcased



Dynamic International will be displaying and running live demos on over 20 machines at IMTS.

"With 35+ years as a distributor and 25+ years as an importer, Dynamic International has a unique understanding of customer and distributor requirements. Seeking out the best possible combination of rigidity, quality and value for the North American market led the company to manufacture the SMART Machine Tool brand of machines, which will be showcased," said a company spokesperson.

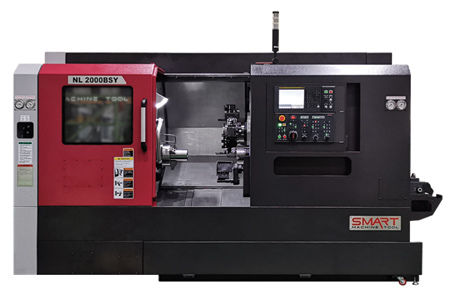

SMART Y-Axis Turning Centers

These boxway turning centers are machined from one-piece casting that promotes heavy-duty machining. "The Y-axis model allows side milling, off-center drilling and grooving, which results in better machining accuracy and also enables more complex shape machining capability compared to conventional 2- and 3-axis turning centers," said the spokesperson. "The 12-station (24 position) BMT55 turret is equipped with a 7.5 HP motor for milling, ensuring high machining performance, reliability and reduced workpiece processing time. From simple machining to multiaxis simultaneous machining, all operations can be completed in one set-up."

Key specifications of the SMART Y-Axis Turning Centers (NL2000ASY, NL2000BSY models):

  • Max. turning diameter: 15.98"
  • Max. turning length: 29.50", 29.13"
  • Chuck sizes (main/sub): (ASY) 6" & 6", (BSY) 8" & 8"
  • Spindle speed (main/sub): (ASY) 6,000/6,000 RPM, (BSY) 4,500/5,000 RPM
  • Spindle motor (main/sub): (ASY) 15/25 HP/20 HP, (BSY) 20/25 HP/20 HP
  • Rapid traverse: (X/Z/ZB) 1,181 IPM, (Y) 394 IPM.

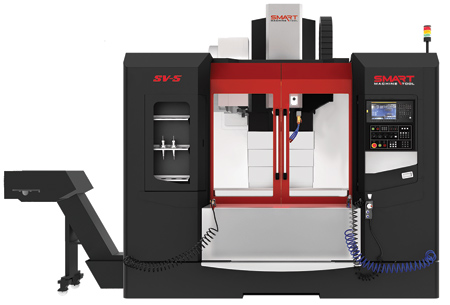

SMART SV Series VMC

The SV Series models feature a high-quality cast iron and rigid triangular frame design, which lowers the center of gravity and offers stability during cutting. The extra wide column base delivers enhanced stability and cutting force absorption for better cutting dynamics. These machines were designed with the user's needs in mind, with high visibility work envelope and wide, easy access front and side doors. The SV Series is equipped with a high-speed 30-tool arm type automatic tool changing (ATC) system.

Key specifications of the SMART SV Series (SV2, SV3, SV5 models):

  • XYZ axis travels: SV2 (31.4", 19.6", 19.6")
  • XYZ axis travels: SV3 (43.31", 23.62", 23.62")
  • XYZ axis travels: SV5 (51.18", 27.56", 27.56")
  • Table size: 19.6" x 39.2", 49.21" x 23.62", 57.09" x 25.59"
  • Spindle taper: CAT40 (BIG PLUS)
  • Spindle speed: 10,000, 12,000 RPM
  • Spindle motor: 20/25 HP.

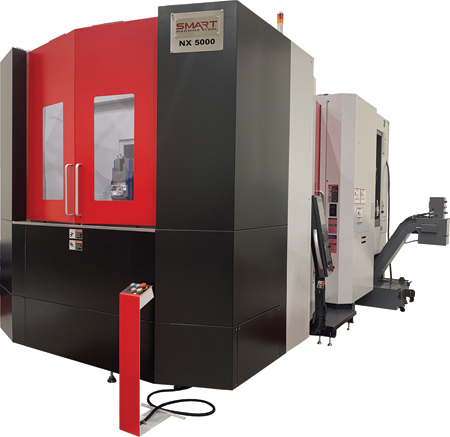

SMART NX5000 HMC

The NX5000 features a box-in-box design, a stationary one-piece column mounted on a rigid T-shaped mono-cast base, for increased cutting capability. The casting design, 3.8 second chip to chip tool changes and the spindle cutting capability are designed to achieve accurate parts produced in the shortest time. The NX5000 is equipped with a synchronous swing motion (SSM) tool change system with 60 tool capacity.

Key specifications of the SMART NX5000:

  • XYZ axis travels: 31.5", 29.5", 32.7"
  • Table size: 20" x 20"
  • Spindle taper: CAT50 (BIG PLUS)
  • Spindle speed: 12,000 RPM
  • Spindle motor: 40 HP
  • Spindle torque: 310 ft-lbs.
  • Rapid traverse (XYZ): 2,362 IPM.

For more information contact:

Dynamic International

N25 W23287 Paul Road

Pewaukee, WI 53072

262-521-1100

sales@dynamicintl.com

www.dynamicintl.com

IMTS South Building, Level 3

Booth 338336
