Camera Achieves High Speed Imaging in Challenging Lighting

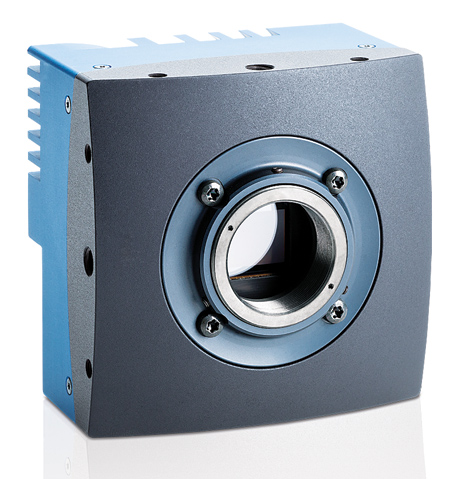

Mikrotron EoSens 1.1 CXP Camera

Mikrotron offers its EoSens 1.1 CXP one-megapixel camera, featuring the latest CMOS sensor technology and the CoaXPress 1.1 interface.

Featuring ultra-fast frame rates of 2,050 frames-per-second at full 1,280 x 864 pixel resolution, the Mikrotron EoSens 1.1 CXP detects flaws in objects too small to be seen by the human eye. "With its unmatched price-to-performance feature set, including gamma correction, noise reduction and GPIO, the camera meets the quality and throughput requirements of today's high-speed inspection applications," said a company spokesperson.

"Machine builders will appreciate the Mikrotron EoSens 1.1 CXP 'single-cable' simplicity and lightning fast speed," continued the spokesperson. "Designed to streamline system configurations, the CoaXPress interface combines power, precise triggering and ready-to-use image data onto the same coaxial cable, resulting in significant cost savings." The camera's 4 x CXP-6 ports transmit data from camera to host at 6.25 GB per second per cable or up to 25 GB per second for four cables. Data can be carried with virtually no latency up to 40 m in length at high speeds or over 100 m at lower speeds, opening up new avenues in system design in defense, surveillance or robotics applications that require continuous panning.

"Although based on a CMOS sensor, the camera delivers the extreme sensitivity of more expensive CCD cameras (20 v/lux @550 Nm), permitting use in imaging tasks that demand exceptional detail in very low, imperfect or changing lighting conditions," said the spokesperson. "As a result, businesses can accelerate inspection processes without the need to upgrade illumination systems by deploying the Mikrotron EoSens 1.1 CXP."

The EoSens 1.1 CXP is manufactured with industrial grade components able to withstand extreme temperatures and environments. It is contained within an 80 mm x 80 mm x 53 mm metal housing for additional reliability. Compact dimensions allow machine builders to fit the EoSens 1.1 CXP into the tightest spaces without needing to source an expensive custom solution or modify an existing camera.

For more information contact:

Mikrotron

14032 Hermosillo Way

Poway, CA 92064

858-774-1176

info@mikrotron.de

www.mikrotron.de
