High Resolution Digital Indicators

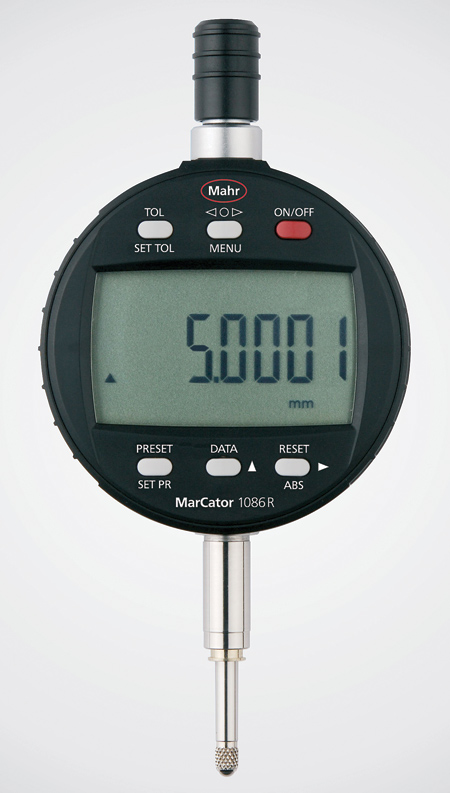

The MarCator 1086R-HR and 1087R-HR line of digital indicators now offers high-resolution capabilities.

"Mahr Inc. has announced a new higher-selectable resolution option to MarCator 1086R and 1087R digital indicators-making its indicator family one of the most fully-featured and versatile available," said a company spokesperson. "These digital indicators provide easy operation, a large display, powerful application features and simple transmission of measurements with their wired or integrated wireless system."

The new option offers six different resolutions, ranging from 0.00001" to 0.0005" (0.0001 mm to 0.01 mm). MarCator digital indicators with the selectable high resolution option include the 1086 R-HR with large display and the 1087 R-HR analog/digital display and dynamics. These indicators include Mahr's MarConnect data output, allowing for three choices of data output (USB/RS0-232 or Digimatic) depending on the data cable plugged into the indicators.

Both new digital indicators are available in either 0.5/" or 1" (12.5 mm or 25 mm) versions. Along with higher resolutions, these new digital indicators also provide higher performance. Short range performance is better than 20 µin (0.5 µm) and within 70 µin (1.8 µm) for the 0.5" (12.5 mm) version and 0.0001" (2.2 µm) for the long range 1" (25 mm) version.

To switch the indicator's resolution, the user simply enters the main menu of the indicator and scrolls over to the resolution display. From there, the up-arrow option can be used to choose the appropriate resolution to accommodate varying gauging applications.

These digital indicators also include standard features such as rotating display, a reference system that remembers the zero location for fast turn on and use, three-year battery life, IP42 protection and MarConnect Data output controlled by MarCom software. Mahr's MarCom software is designed to make data acquisition simple-users can take a measurement and send data directly into Microsoft Excel or via a keyboard code into any Windows program.

For more information contact:

Mahr Inc.

1144 Eddy Street

Providence, RI 02905

800-343-2050 / 401-784-3100

information@mahr.com

www.mahr.com
