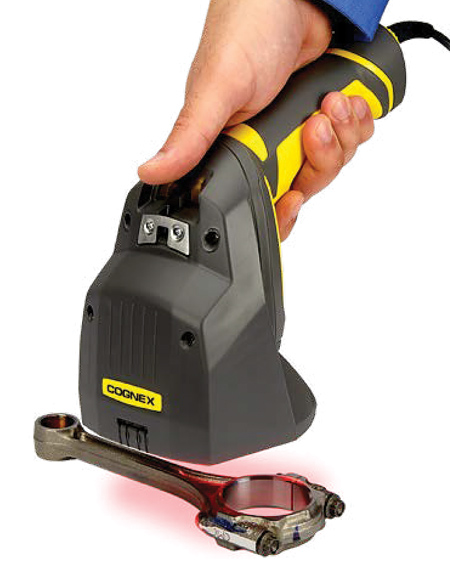

The DataMan 8072V has an ergonomic, handheld scanner-like design that is easy to maneuver.
Barcode verification is the process of grading the quality of barcodes. Barcode verifiers capture images and generate reports to demonstrate compliance to parameters within industry standardization guidelines.
"The DataMan 8072 series verifier features powerful lighting options, robust grading algorithms, a high-speed processing engine and a high-resolution camera to capture and grade the most difficult DPM codes," said a Cognex spokesperson. "Combined with simple DataMan Setup Tool software, DataMan 8072 verifiers deliver detailed, repeatable results."
"As the only DPM verifier on the market with 30°, 45° and 90° lighting options, the DataMan 8072V can easily illuminate codes on textured, curved and even highly reflective surfaces," continued the spokesperson. "This provides the best chance of reliably capturing and grading code images to verify compliance with the International Organization for Standardization AIM DPM Quality Guideline (ISO/IEC TR 29158)."
DataMan 8072V features:
- 27 x 20 mm field-of-view (FOV)
- 6.0 mil minimum X-dimension
- High-speed processing engine
- 1.2-megapixel sensor.
The DataMan Setup Tool calculates an overall grade based on several quality parameters such as symbol contrast, modulation, pattern damage and decodability. Detailed results show whether codes meet industry standards and auto-generated reports can be used to demonstrate compliance, as well as help pinpoint printing and process control issues.
The DataMan 8072V has an ergonomic, handheld scanner-like design that is easy to maneuver. A small imaging head gives users better access to codes in recessed or hard-to-reach locations. An optional stand accessory with adjustable height provides added flexibility when working with oddly shaped parts. A laser focus indicator feature integrated into the head of the verifier ensures the camera is always in focus. The DataMan 8072V features an IP65 rating and rugged housing to withstand the harshest factory floor environments.
A basic calibration card with a Data Matrix symbol is included with the DataMan 8072 verifier. A calibration card with conformance symbols is available to purchase separately. The industry will dictate the type of calibration card needed. Cards expire two years from the issue date.
For more information contact:
Cognex Corporation
One Vision Dr.
Natick, MA 01760
508-650-3000
ts.global@cognex.com
www.cognex.com
