X-Series Dot Peen Markers
March 1, 2020

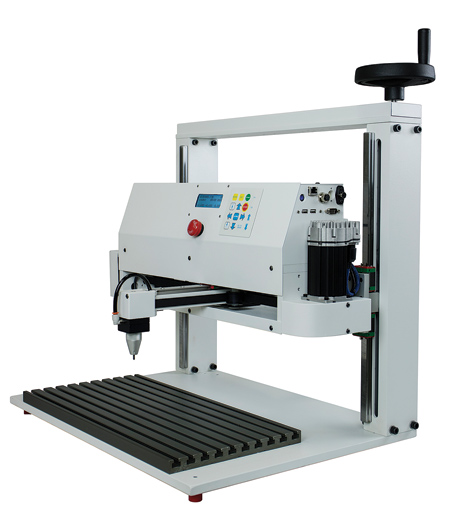

Kwik Mark Inc. X Series markers are designed to improve overall operation and streamline every aspect of marking products. "The smarter design offers high performance for the most demanding applications," said a company spokesperson.
The cantilevered marking head provides a clear line of sight while the marking head can retract "back" to clear other tooling and equipment. Up to 6 axes are motion control ready and no PC or control box is required. For custom integration with logic, additional I/O is available.
This dot peen marker-manufactured in the U.S.-features machine tool quality construction with twin rigid upright column leadscrew and ball slide design, brushless servomotors and non-contact limit home sensors and a large T-slot table for fixturing. The X-12 model has a 12" x 6" marking area, the X-24 model has a 24" x 6" marking area and both have a 12" height capacity. They are also available with programmable Z-axis (full column height).
A true file based solution with Kwik Mark's patented iTeach function allows the user to use the marking tip as a "pointer" to define the text path. The latest embedded controls feature CF card memory with preprogrammed functions, job selection or data input and bar code input ready. The machines are future upgradable and field rebuildable.
For more information contact:
Kwik Mark Inc.
4071 Albany Street
McHenry, IL 60050
815-363-8268
info@kwikmark.com
www.kwikmark.com
