CMM for Renishaw 5-Axis Ph20 Probe

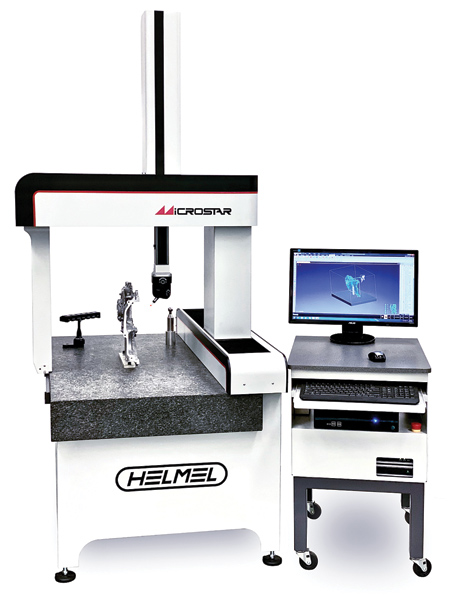

Helmel Engineering has introduced a new CMM developed to take advantage of the capabilities of Renishaw's PH20 Probe concept. "The Microstar Model 320-185 is an evolution of the company's venerable Microstar line of durable mechanical bearing CMMs that are proven workhorses in labs, gauge rooms and on the production floor," said a company spokesperson.

"Virtually all moving bridge CMMs today were developed for slower probe systems that index between limited numbers of locked A-B position angles and then measure with 3-axis moves," continued the spokesperson. "In contrast, the Renishaw PH20 Probe system with UCCT5 controller provides true 5-axis functionality with infinite positions throughout the 230° x 360° head range in combination with the X-, Y- and Z-axis motion of the CMM." The PH20 also includes "head-tap" mode where the probe rapidly acquires data autonomously while the CMM remains stationary.

The new design includes several advances. For improved accuracy, the Z-axis has a larger section for stiffness and stronger bearing separation, and the X-axis carriage employs an innovative dual bearing flexure stabilizer concept combined with new self-aligning mounts for linear bearings. Scales are upgraded to Vionic long-life stainless steel tapes mounted on steel surfaces with 50-nanometer resolution reading heads. Error correction is implemented at the controller and temperature compensation is offered. "These improvements make the 320-185 among the most accurate mechanical bearing CMMs available," said the spokesperson.

The drive system has been improved as well. The steel and Kevlar reinforced drive belts are larger and the tachmotors are stronger on all three axes, allowing more aggressive motion parameters. "The result is a CMM system that can outperform most any other with throughput double to triple measuring speeds of traditional CMMs with indexing probes. Due to the rapid capabilities of this system, we expect plenty of interest for in-production applications," said the spokesperson. Added protection for harsh environments is also available.

Initially offered with a measuring range of 20" x 30" x 18", the system includes CMM Manager CAD software as standard. Renishaw's MODUS software is an option. The system also includes a TCR20 six-port automatic stylus changer.

For more information contact:

Helmel Engineering Products, Inc.

6520 Lockport Road

Niagara Falls, NY 14305-3597

716-297-8644

sales@helmel.com

www.helmel.com
