LUTZE Expands Cable Entry System Offering

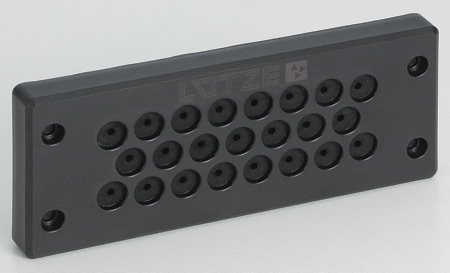

LUTZE Inc. has introduced its Cablefix X cable entry system to complement its existing cable and cable management portfolio. Featuring multi-layered X-seal technology, Cablefix X is designed to simplify installation without compromising ingress protection. The X membrane seals are closed by default, eliminating the need to plug unused entry points. These innovative cable entry systems achieve Type 4X, 12 and 13 with a protection class of IP65.

"Cablefix X is available with 12 or 23 entry points and provides a space saving alternative to traditional cable glands," said a company spokesperson. Cablefix X requires only one enclosure cutout and can be installed onto enclosures of any wall thickness with four mounting bolts. For enclosures with a wall thickness of 1.5 mm, Cablefix X is available with a snap-in mounting option.

Cablefix X features include:

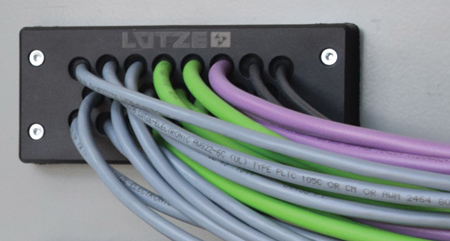

  • Cables install easily by pushing the end through the seal from the front
  • "Saves up to 50% installation space and 80% installation time vs. using individual cable glands," said the spokesperson
  • Standard 112 mm x 36 mm cutout makes cabinet preparation easy
  • Compatible with all major control cabinets and electrical enclosures.

For more information contact:

LUTZE Inc.

13330 South Ridge Dr.

Charlotte, NC 28273

800-447-2371

info@lutze.com

www.lutze.com
