Barfeeder Increases Productivity with Three Feed Tube Cartridge

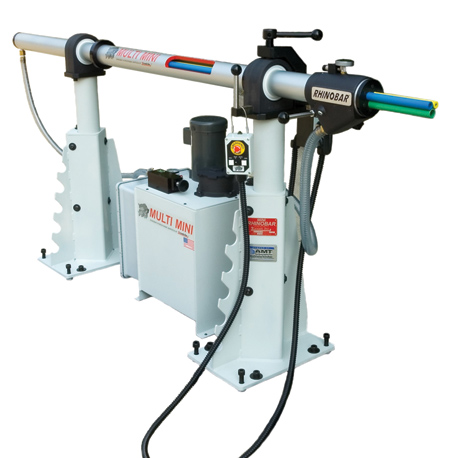

Lexair Inc. is now offering the Multi Mini Rhinobar, a hydrodynamic barfeeder for use with Swiss-style CNC screw machines that features a three feed tube cartridge instead of the traditional single feed tube. The Multi Mini makes multiple stock diameter indexing simple and fast by combining three feed tubes inside a single aluminum barrel. Bar diameter capacity ranges from 6.35 mm (1/4") to 20 mm, and models are available for either 6' or 12' bar lengths. By eliminating the need to pull one feed tube to insert another when changing sizes, productivity is increased.

A rotary manifold at the rear of the barrel distributes oil flow to the feed tube that is in service. Oil fills the gap between the bar stock and the feed tube, and as the bar begins to turn, hydrodynamic forces move it toward the center on the feed tube. Centering forces are amplified as bar speed increases.

The Multi Mini has ergonomic design features and an upgraded safety interlock system. It includes a front swing-out mechanism for fast and easy reloading of bar stock, an automatic pusher return at the end of the bar and standard built-in Z-axis retraction capability. A removable pendant provided convenient operator control.

For more information contact:

Steve Breslin

Lexair, Inc.

2025 Mercer Road

Lexington, KY 40511

859-255-5001

sbreslin@lexairinc.com

www.lexairinc.com
