"Rotary tables offer the perfect solution for machining multiple sides of a part in a single set-up, or for machining many parts on a multi-sided fixture. But handling very large or very small parts can prove challenging without the correct size rotary," said a Haas spokesperson.

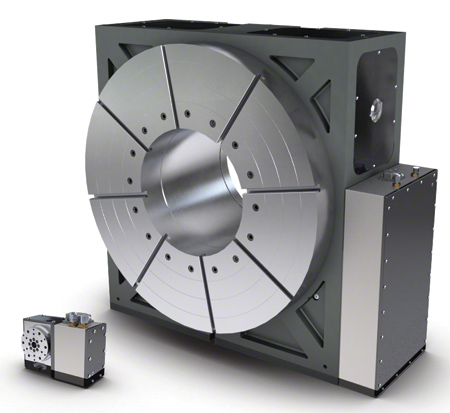

The HRT1000 and HRT100 rotary tables from Haas Automation, Inc., cover both ends of the size spectrum, providing high-precision 4-axis positioning and simultaneous 4-axis motion for extra-large and extra-small parts.
Whether machining large shafts for windmills, rethreading drill pipe or machining blowout preventers, the extra-large Haas HRT1000 rotary table is designed to handle the big jobs. "With its massive platter, generous torque and large through-hole, this extra-large rotary table will easily handle even the biggest 4-axis jobs in your shop," said the spokesperson.
The HRT1000 rotary table is one of three extra-large rotary tables from Haas. It features a massive 1,000 mm (39.37") T-slot platter, with a 17.50" (445 mm) through-hole to handle large shafts and fixtures. The HRT1000 provides 2,000 ft-lbs. (2,711 Nm) of cutting torque for simultaneous 4-axis machining, and offers 14,000 ft-lbs. (18,981 Nm) of brake torque to accommodate large parts and heavy off-center milling and drilling. The platter has eight standard 5/8" (16 mm) T-slots arranged radially at 45° increments.
At the other end of the scale, the ultra-compact HRT100 rotary table is designed to provide high-speed, accurate positioning and full 4-axis motion for machining small parts, such as those found in the medical, dental and electronics industries. Designed to complement the diminutive Haas CM-1 Compact Mill, the unit's small size and lightweight make it a suitable 4-axis solution for even the smallest machining centers.
The HRT100 provides 35 ft-lbs. (47 Nm) of cutting torque, and the 100 mm (3.94") platter indexes at 300 deg/sec for short cycle times. The platter has multiple bolt-hole patterns for flexible fixture mounting, and the table provides 26 ft-lbs. (35 Nm) of brake torque to handle off-center milling and drilling.
For more information contact:
Haas Automation, Inc.
2800 Sturgis Road
Oxnard, CA 93030
800-331-6746
www.HaasCNC.com
