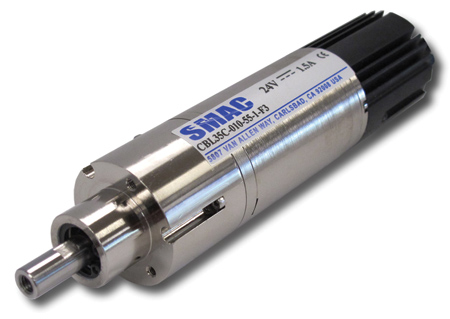

Electric Cylinder with Built-in Controller



The 35 mm diameter CBL35C electric cylinder with built-in controller from SMAC Corporation is designed to enable the direct replacement of existing pneumatic cylinders and retrofits with no machine modifications required. With its built-in controller, the CBL35C can control force, speed and velocity profile.

A graphical user interface is available for easy set-up of parameters. It is designed to allow users to change product profiles on the fly and improve factory uptime.

Features include:

  • Dimensions (mm): O35 x 135 - 217 (depending on stroke)
  • Stroke (mm): 10, 25 (+1/-0)
  • Acceleration (G): up to 50 (zero payload)
  • Peak force (N): up to 61
  • Encoder resolution (µm): 5 (standard) 1 and 0.1 (options)
  • SMAC's patented `Soft-Land' technology.

"The CBL35C is engineered to provide longer life, programmability, high speed, accuracy and energy efficiency and requires no costly compressed air," said a company spokesperson.

For more information contact:

SMAC Corporation

5807 Van Allen Way

Carlsbad, CA 92008

760-929-7575

www.smac-mca.com
