Enabling unmanned operation, Matsuura machining centers are engineered to improve productivity, reduce labor costs and maintain precision to provide improved ROI. Around-the-clock automation, adaptable pallets and other advanced features help ensure that Matsuura machining centers provide improved quality and performance. Booth visitors will be able to see the capabilities of the LF-160 PC42, MAM72-42V PC32, MX-330 PC10, MX-520 PC4 and H.PLUS-405 PC6 machining centers on display at IMTS 2024.

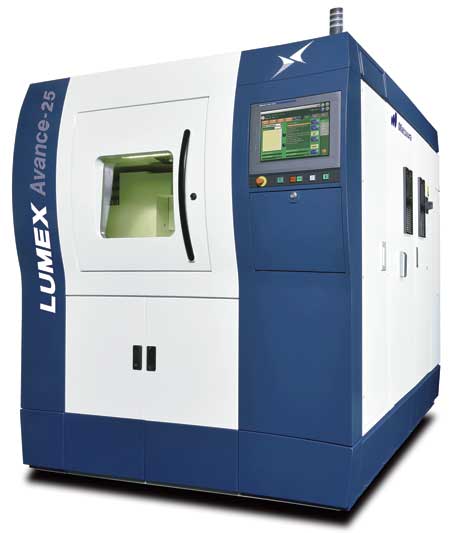

"As the world's first hybrid metal 3D printer, the LUMEX Avance-25 gets you to market faster with a finished part produced in the correct molding resin and with production-like processes," said a company spokesperson. "The LUMEX Avance-25 is the key to true digital manufacturing, reduced cycle times, lower tooling costs and simplified machine set up and part handling."
The LF-160 PC42 offers high accuracy in a compact footprint. Its high-speed spindle and multiple pallet options allow for high production and extended life of small diameter tools. IMTS specifications: 31iB control, 46K HSK-E40 spindle, 338 ATC and PC42.
"The LF-160 PC42 features the highest number of pallets in a 5-axis machine and an ultra-low vibration spindle, ensuring expert precision and exceptionally high accuracy with every run," said the spokesperson. "It is the ideal machine for small or delicate parts, such as medical devices and implants."

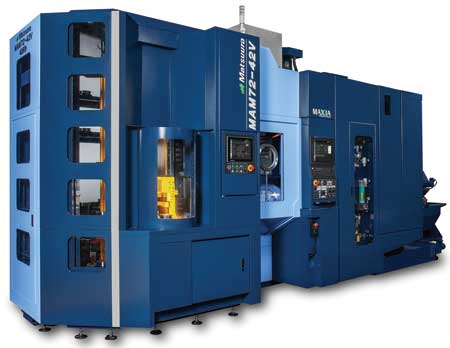

With high accuracy, high repeatability and the capability to run unmanned for extended periods, the MAM72-42V is designed to meet production demands and maximize labor efficiency.
The versatile MAM72-42V features a tailstock option and extra support for long workpieces and tall tombstone fixtures. Its pallet and tool options are compatible with the MAM72-35V, and, like other MAM series machines, it can support continuous production for up to 72 hours. IMTS specifications: 31iB MiOS4 control, 20K oil-air spindle, 330 ATC and PC32.
The MX-330 PC10 is engineered to make efficient, cost-effective production possible with a minimal footprint, large pallet pool and unmanned automation system.
The MX-330 PC10 features a compact floor plan with a large work envelope and high rigidity. Its pallets are compatible with the MAM72-35V, MAM72-42V and MX-420 PC10, making it easy to transfer work between platforms. IMTS specifications: 31iB MiOS4 control, 20K oil-air spindle, 90 tool and PC10.
The MX-520 PC4 features a compact size, ergonomic design and capabilities to increase production with less effort, shorter training times and greater accuracy, the company reported.
The MX-520 PC4 features high rigidity and repeatability and Matsuura's extended unmanned operation. With a minimal footprint and the ability to swap pallets with MAM72-52V, it is an efficient use of space. IMTS specifications: 31iB MiOS4 control, 20K oil-air spindle, 90 tool, PC4.
With the H.Plus-405 PC6, operators can swap tools and pallets as production needs change and achieve higher productivity with around-the-clock automation.
The H.Plus-405 PC6 features the Matsuura-made direct drive 4-axis table, Y-axis stroke extension and compatibility with FASTEMS systems. "Uniquely versatile, it delivers long periods of reliable operation, high accuracy and efficient production," said the spokesperson. IMTS specifications: 31iB control, 20K oil-air spindle, 330 ATC, PC6.
The LUMEX Avance-25 metal laser sintering hybrid milling machine is a powder bed metal AM platform with subtractive machining capability. The machine combines selective laser sintering (SLS) along with high-speed milling (HSM) commonly called hybrid AM. IMTS specifications: 45k RPM, built-in #20 dual contact, grease lube spindle, 20 tools, U-axis travel 300 mm spec. (max. build parts weight 150 kg).
For more information contact:
Matsuura Machinery USA
325 Randolph Ave., Ste. 100
St. Paul, MN 55102
866-769-1548
info@matsuurausa.com
www.matsuurausa.com
IMTS South Building, Level 3
Booth 338630
